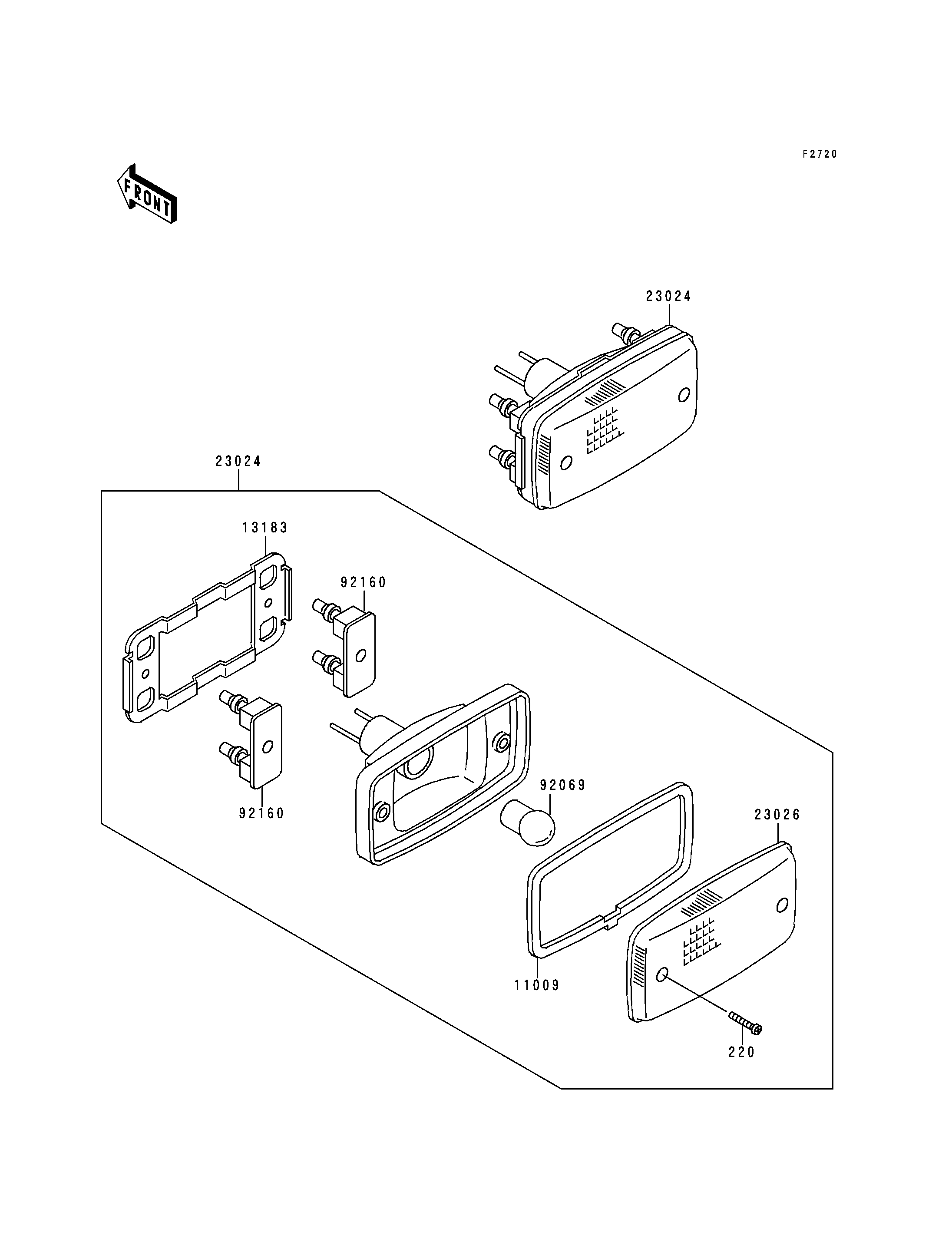

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220B0420 4
GASKET,TAIL LAMP 11009 11009-4004 2
PLATE,TAIL LAMP 13183 13183-1261 2
LAMP-ASSY-TAIL 23024 23024-1118 2
LENS,TAIL LAMP 23026 23026-4003 2
BULB,12V 8W 92069 92069-1012 2
DAMPER,TAIL LAMP 92160 92160-1053 4
