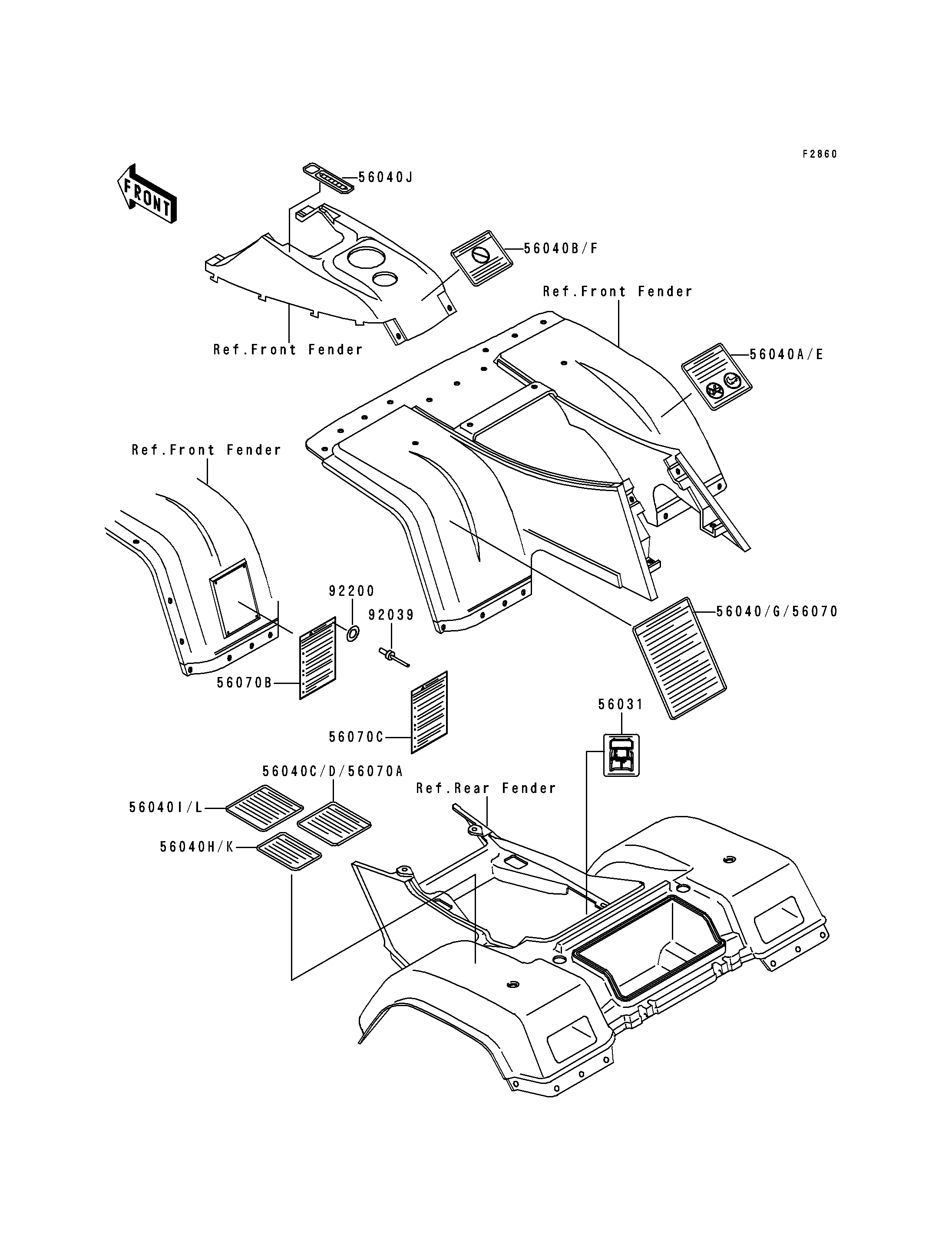

56031
56040
56040A
56040B
56040C
56040H
56040I
56040J
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,BATTERY VENT 56031 56031-1806 1
LABEL-WARNING,SERIOUS INJURY 56040 56040-1256 1
LABEL-WARNING,TRANSPORT 56040A 56040-1261 1
LABEL-WARNING,UNDER 16 56040B 56040-1276 1
LABEL-WARNING,NO PASSENGER 56040C 56040-1277 1
LABEL-WARNING,TIRE INFO 56040H 56040-1330 1
LABEL-WARNING,MAX VEHICLE LOAD 56040I 56040-1331 1
LABEL-WARNING,SHIFT PATTERN 56040J 56040-1332 1
LABEL-WARNING,NO PASSENGER 56040D 56040-1280 1
LABEL-WARNING,TRANSPORT 56040E 56040-1283 1
LABEL-WARNING,AGE 56040F 56040-1325 1
LABEL-WARNING,GENERAL 56040G 56040-1326 1
LABEL-WARNING,TIRE INFO 56040K 56040-1337 1
LABEL-WARNING,MAX VEHICLE LOAD 56040L 56040-1338 1
