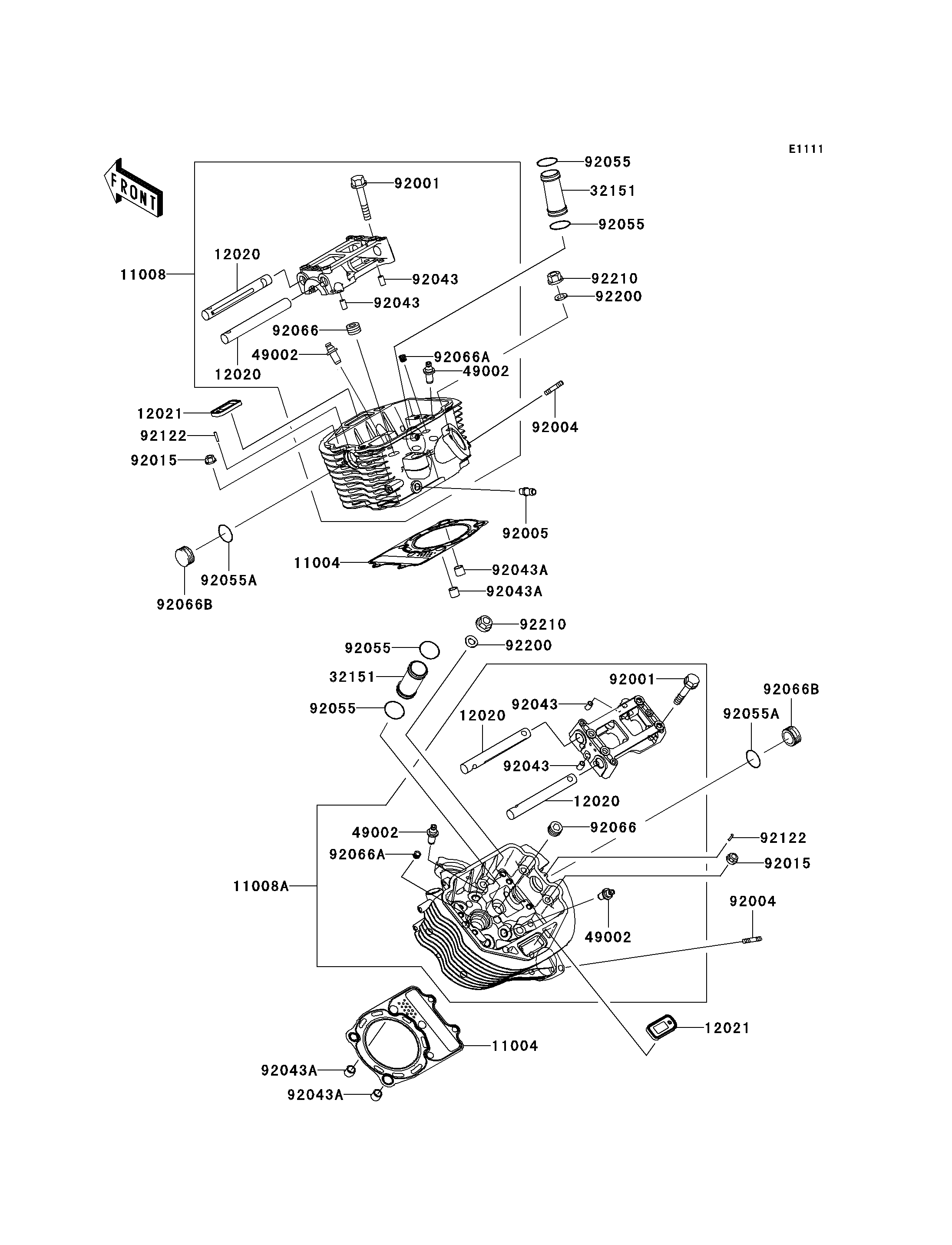

2007 Vulcan 900 Classic LT - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11004
11008
11008A
12020
12020
12020
12020
12021
12021
32151
32151
49002
49002
49002
49002
92001
92001
92004
92004
92005
92015
92015
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92055
92055
92055
92055
92055A
92055A
92066
92066
92066A
92066A
92066B
92066B
92122
92122
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0062 2
HEAD-COMP-CYLINDER,FR 11008 11008-0102 1
HEAD-COMP-CYLINDER,RR 11008A 11008-0103 1
SHAFT-ROCKER 12020 12020-1070 4
VALVE-ASSY-REED 12021 12021-0017 2
PIPE,PLUG 32151 32151-1893 2
GUIDE-VALVE 49002 49002-1089 AR
BOLT,FLANGED,8X58 92001 92001-1005 8
STUD,8X22 92004 92004-1217 4
FITTING,BREATHER PIPE 92005 92005-1161 1
NUT,FLANGED,8MM 92015 92015-1406 4
PIN,6.2X8X14 92043 92043-1263 4
PIN,11X14X12.3 92043A 92043-1266 4
RING-O,27.7X1.9 92055 92055-0096 4
RING-O,24.5X2.0 92055A 92055-0097 2
PLUG,PT1/2X12.5 92066 92066-0002 2
PLUG,PT1/4X8.9 92066A 92066-1260 2
PLUG,CAM HOLE 92066B 92066-1462 2
ROLLER,3X15.8 92122 92122-1126 2
WASHER,10.5X20.5X1.6 92200 92200-0313 8
NUT,FLANGED,M10X1.25 92210 92210-0269 8
