2007 Vulcan 900 Classic LT
SELECT A NEW VEHICLEFind diagram by part name or number

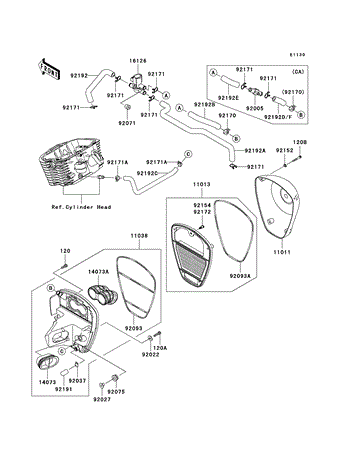

Air Cleaner

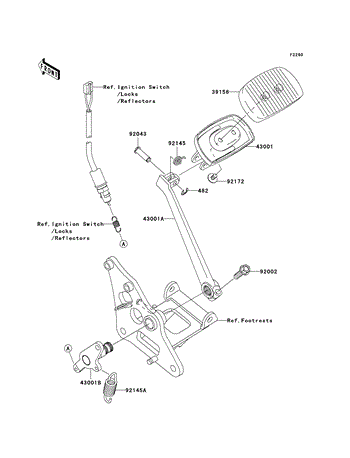

Brake Pedal/Torque Link

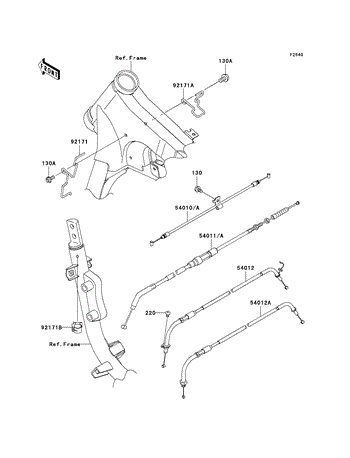

Cables

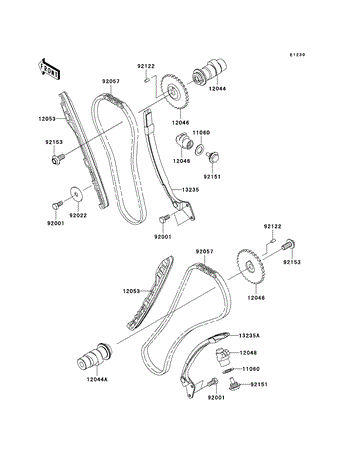

Camshaft(s)/Tensioner

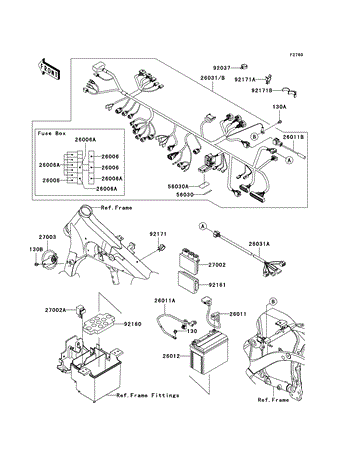

Chassis Electrical Equipment

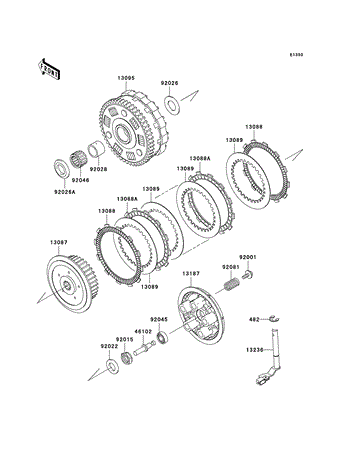

Clutch

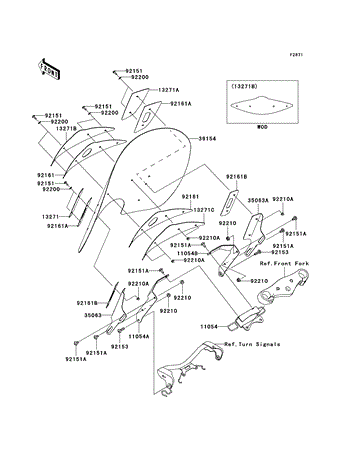

Cowling

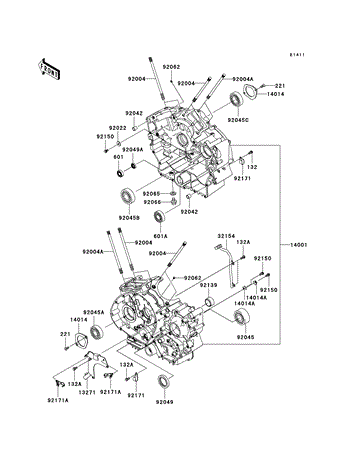

Crankcase

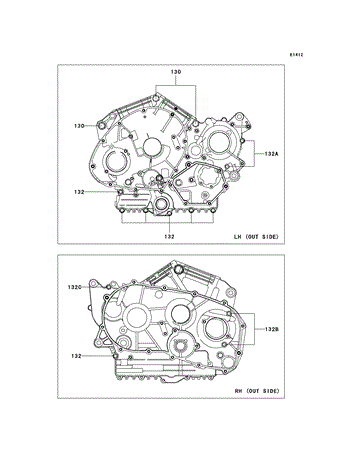

Crankcase Bolt Pattern

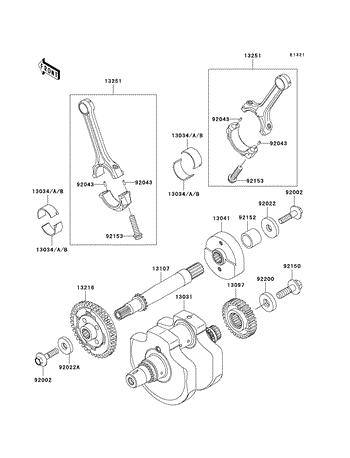

Crankshaft

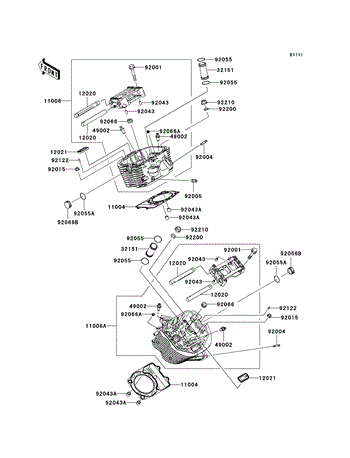

Cylinder Head

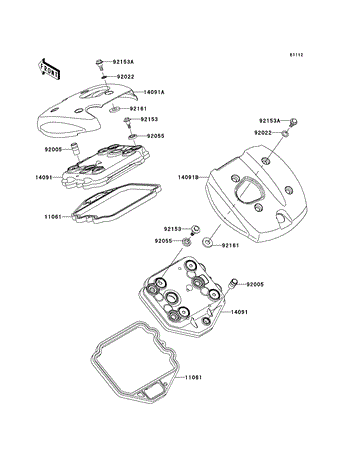

Cylinder Head Cover

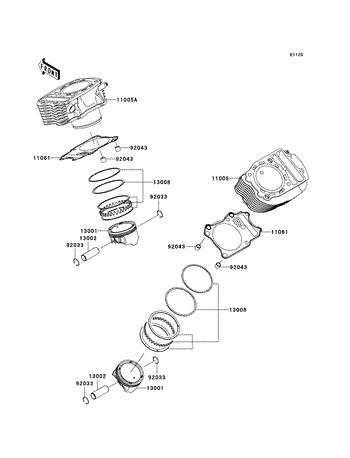

Cylinder/Piston(s)
Decals(Red/Titanium)(D7F)

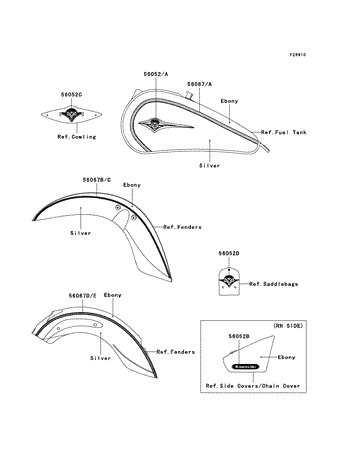

Decals(Silver/Ebony)(D7F)

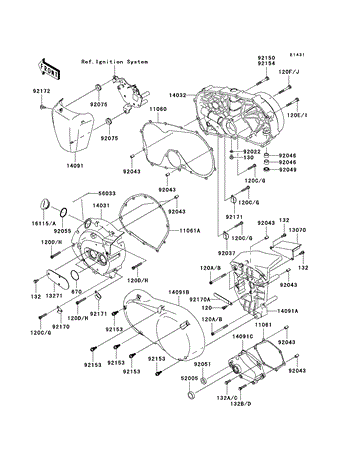

Engine Cover(s)

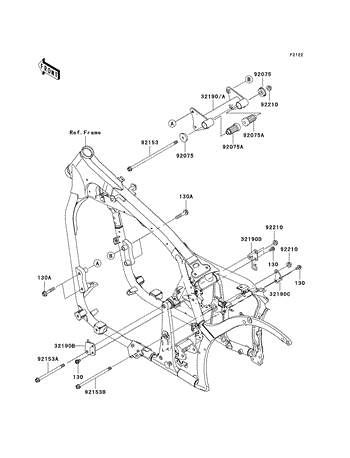

Engine Mount

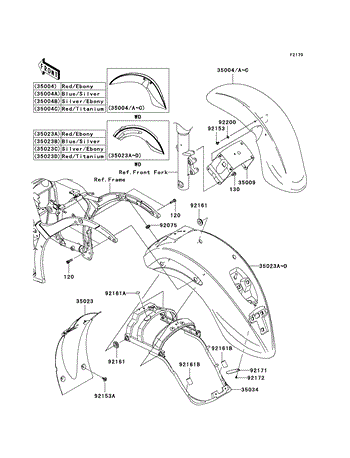

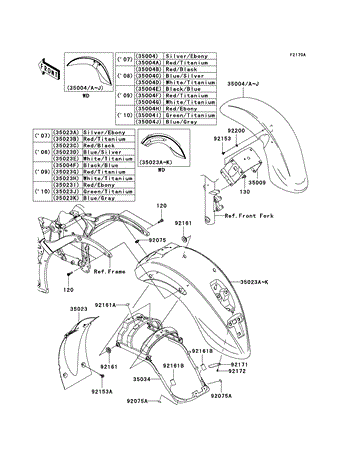

Fenders(-JKAVN2D1 7A011496)
Fenders(JKAVN2D1 7A011497-)

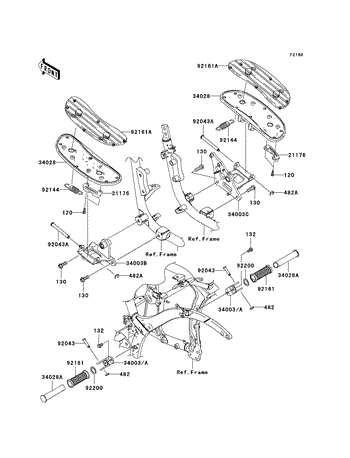

Footrests

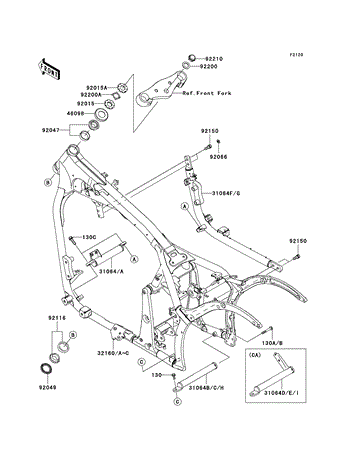

Frame

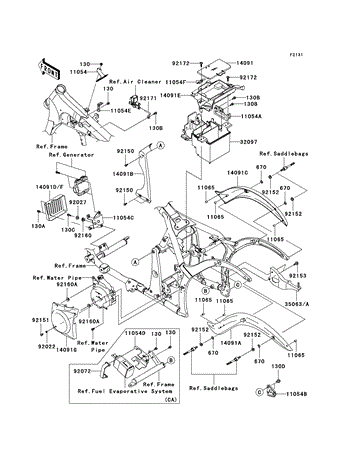

Frame Fittings

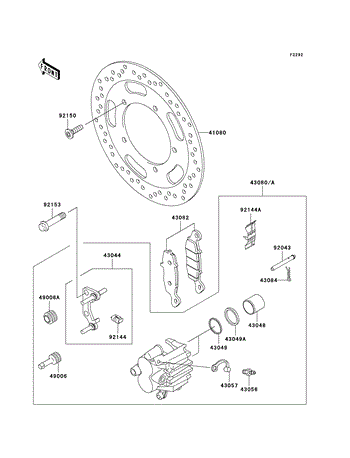

Front Brake

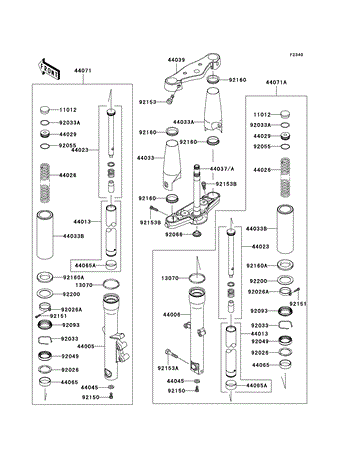

Front Fork(-JKAVN2D1 7A010827)
Front Fork(JKAVN2D1 7A010828-)

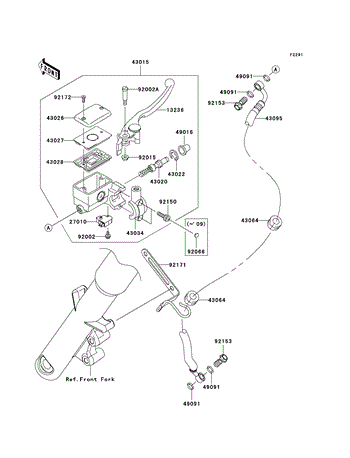

Front Master Cylinder

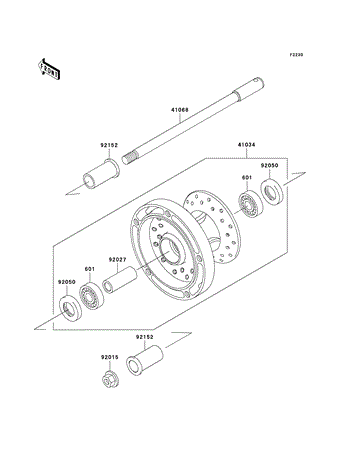

Front Wheel

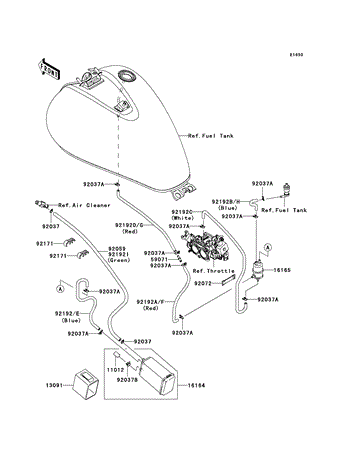

Fuel Evaporative System(CA)

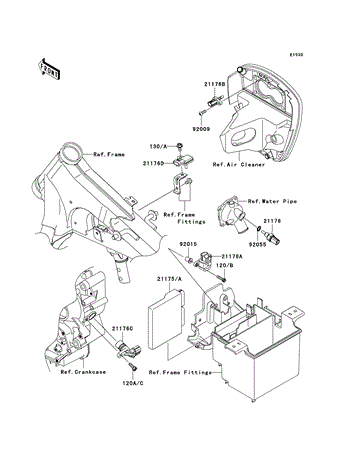

Fuel Injection

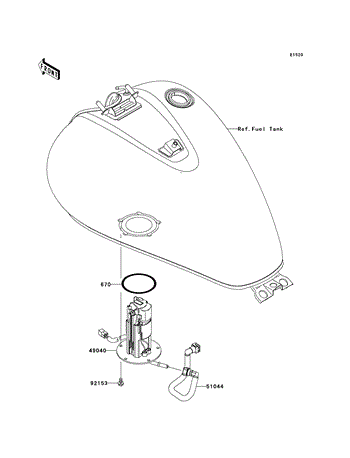

Fuel Pump

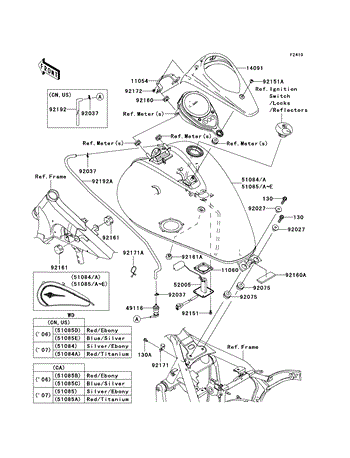

Fuel Tank(D6F/D7F)

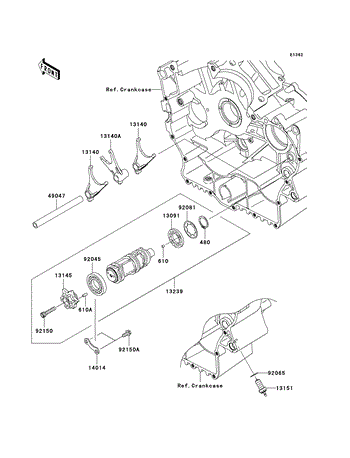

Gear Change Drum/Shift Fork(s)

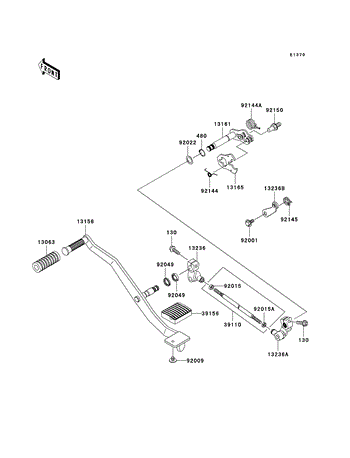

Gear Change Mechanism

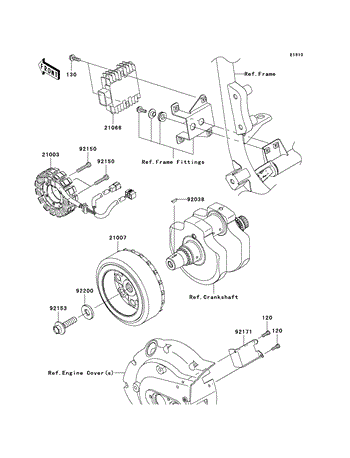

Generator

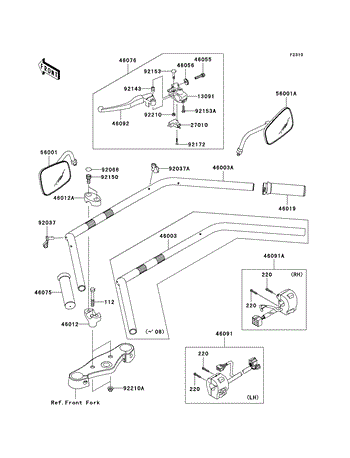

Handlebar

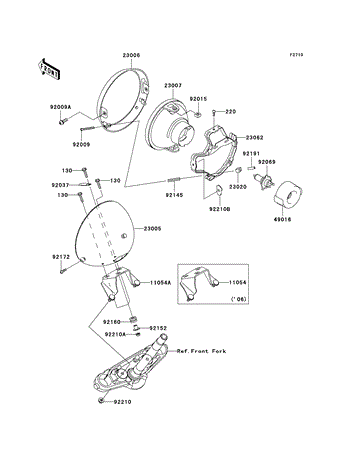

Headlight(s)(D6F-D8F)

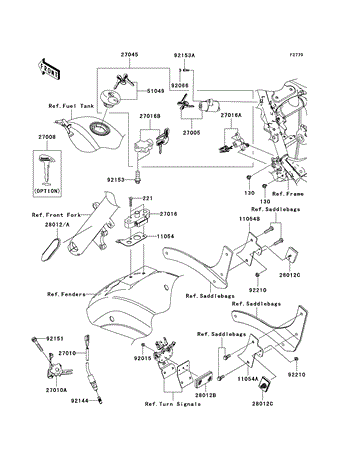

Ignition Switch/Locks/Reflectors

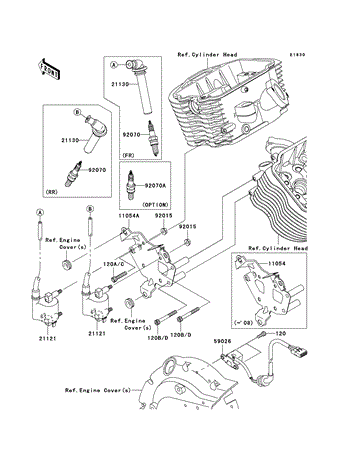

Ignition System

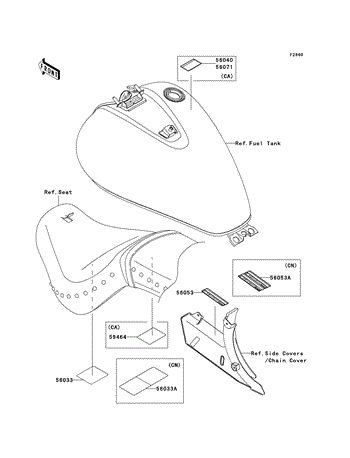

Labels

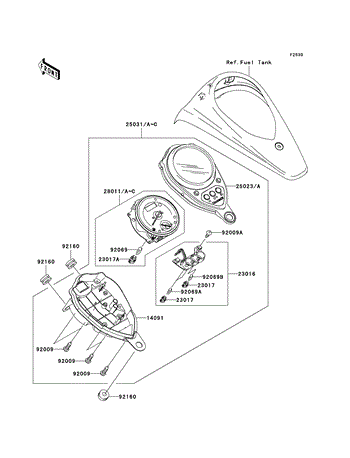

Meter(s)

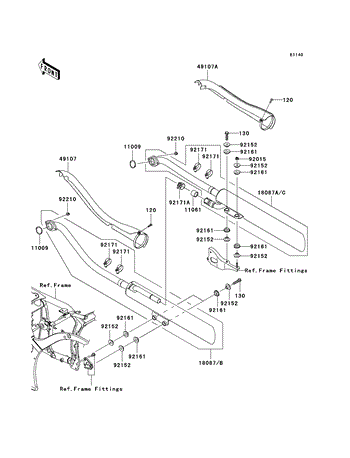

Muffler(s)

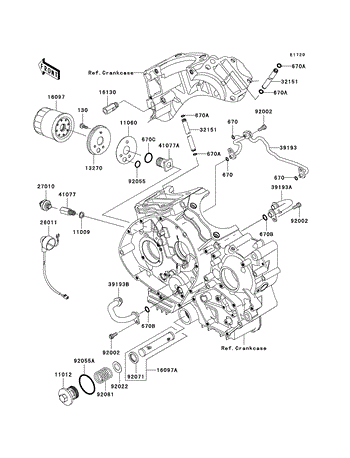

Oil Filter

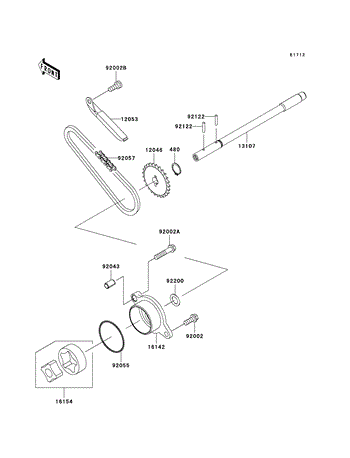

Oil Pump

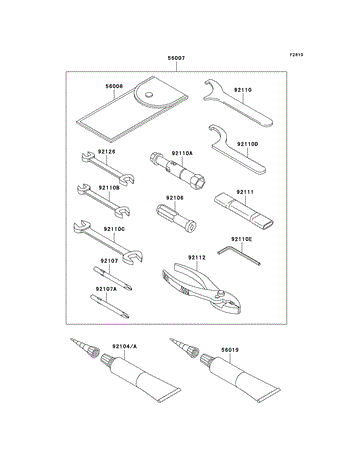

Owner's Tools(D6F-D9F)

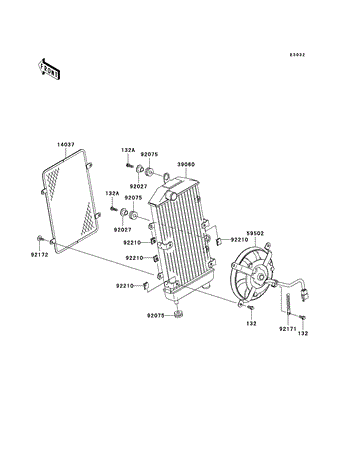

Radiator

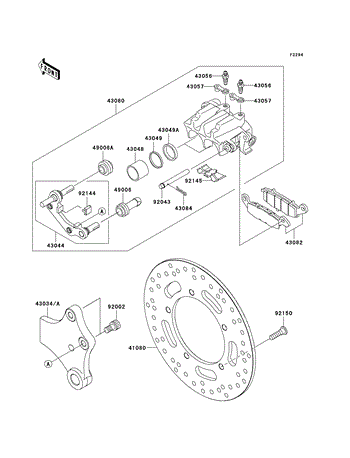

Rear Brake

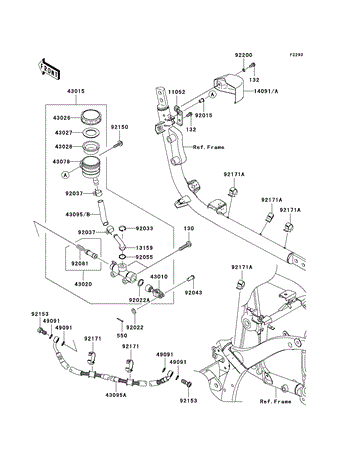

Rear Master Cylinder

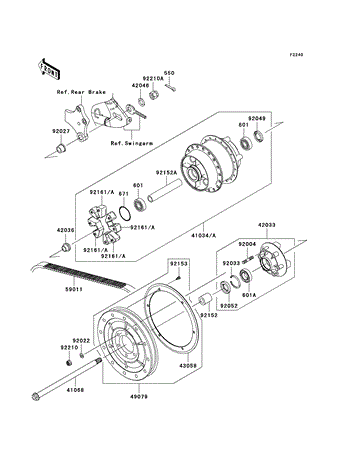

Rear Wheel/Chain

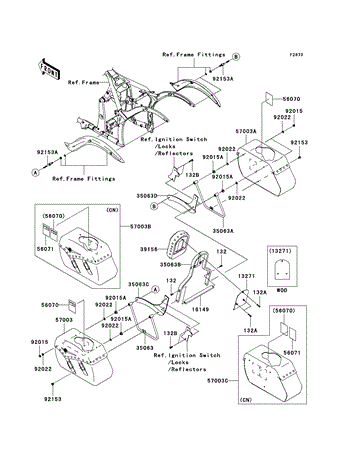

Saddlebags(D6F-D9F)

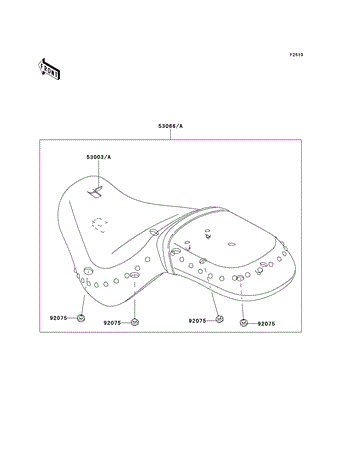

Seat

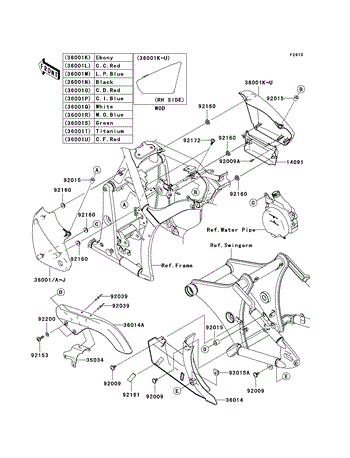

Side Covers/Chain Cover

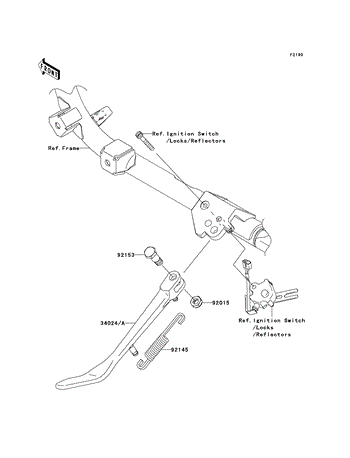

Stand(s)

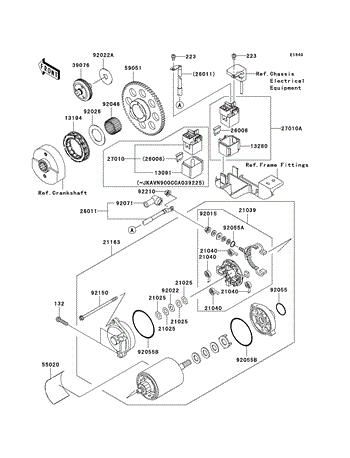

Starter Motor

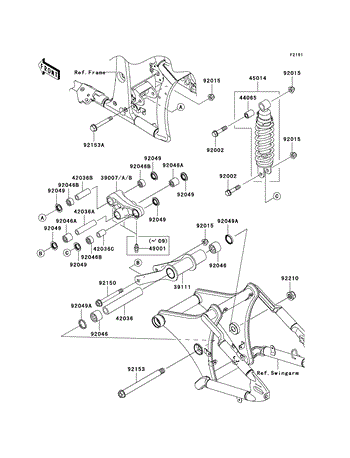

Suspension/Shock Absorber

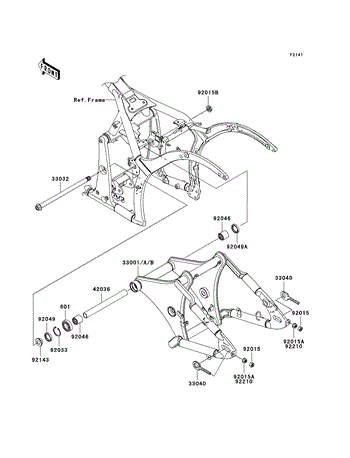

Swingarm

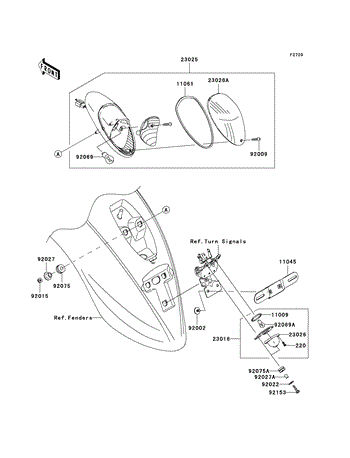

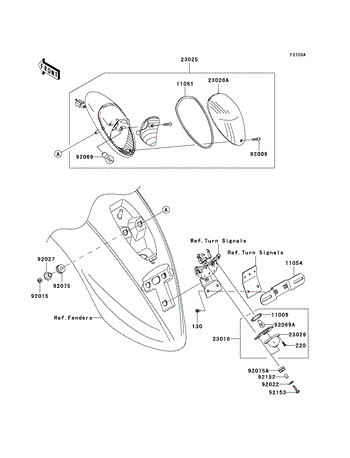

Taillight(s)(-JKAVN2D1 7A011496)
Taillight(s)(JKAVN2D1 7A011497-)
Throttle(D6F/D7F)

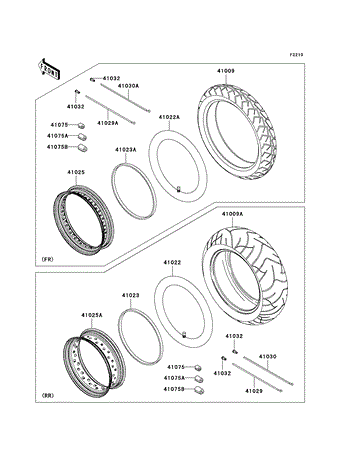

Tires

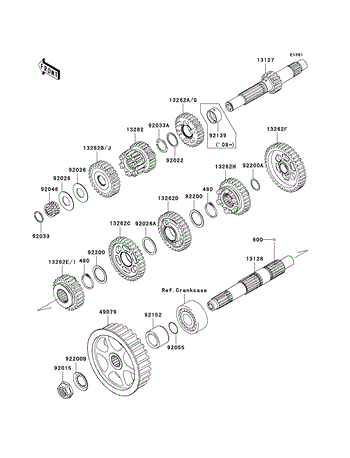

Transmission

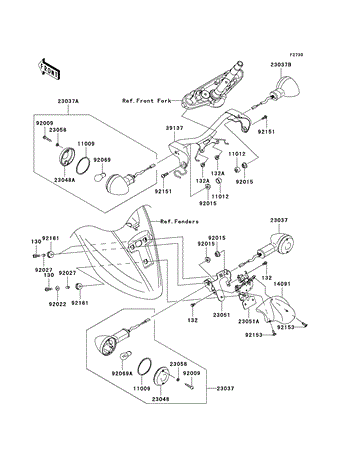

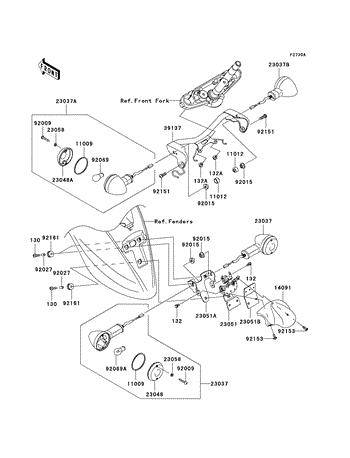

Turn Signals (JKAVN2D1 7A011497-)
Turn Signals(-JKAVN2D1 7A011496)

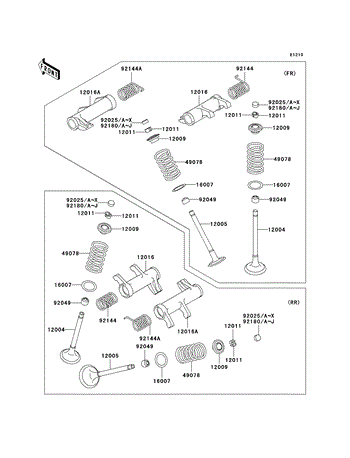

Valve(s)

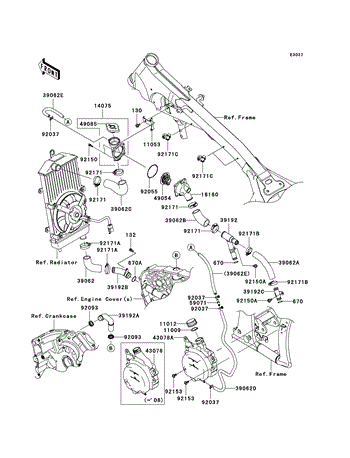

Water Pipe

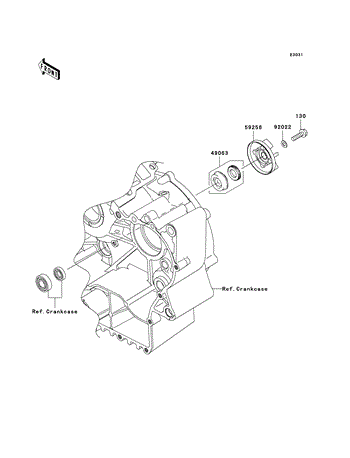

Water Pump
