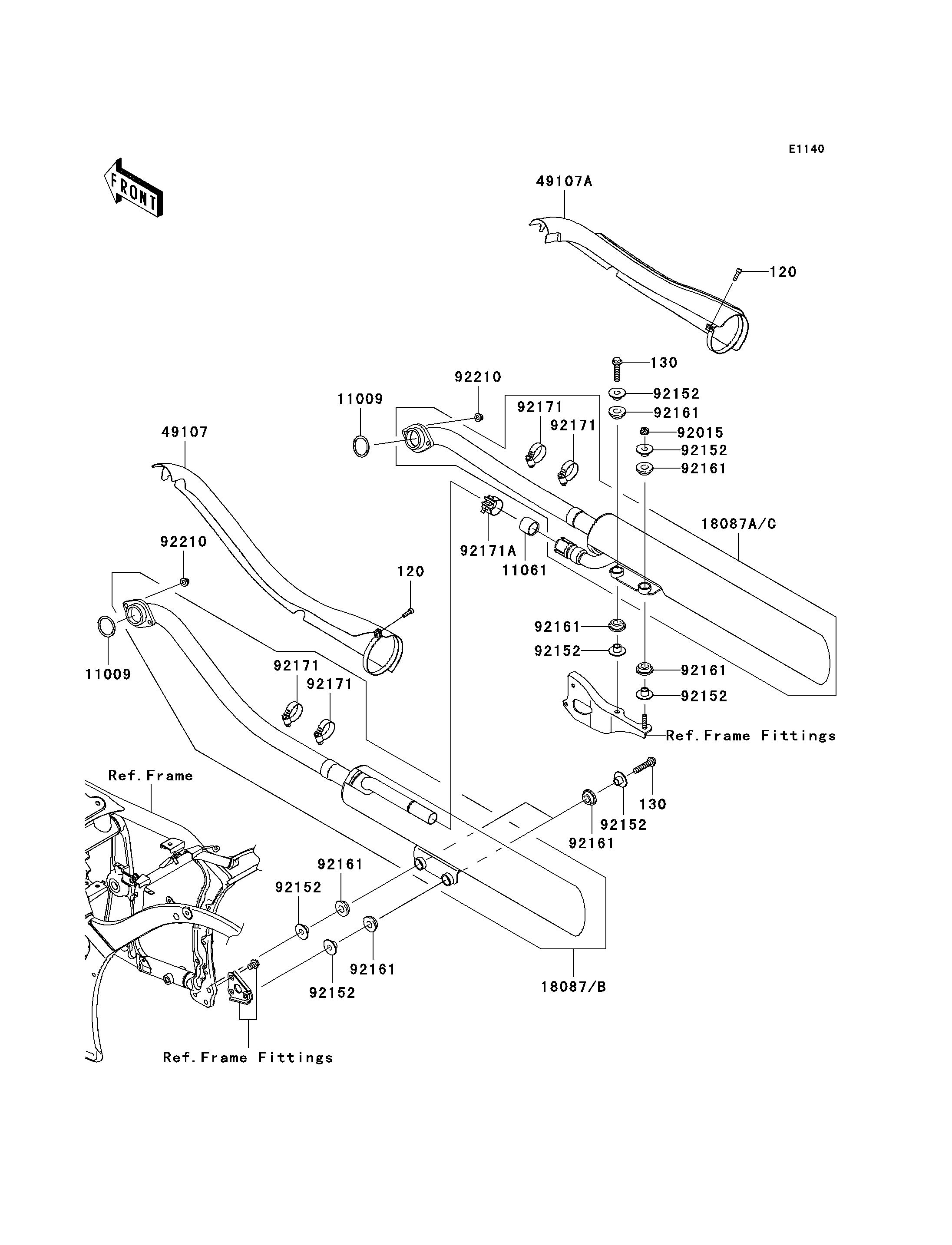

2007 Vulcan 900 Classic LT - Muffler(s)
120
120
130
130
11009
11009
11061
18087
18087A
49107
49107A
92015
92152
92152
92152
92152
92152
92152
92152
92161
92161
92161
92161
92161
92161
92161
92171
92171
92171
92171
92171A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X20 | 120 | 120CC0620 | 2 | ||
| BOLT-FLANGED,8X35 | 130 | 130BB0835 | 3 | ||
| GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1856 | 2 | ||
| GASKET,MUFFLER JOINT | 11061 | 11061-0207 | 1 | ||
| MUFFLER,FR | 18087 | 18087-0116 | 1 | ||
| MUFFLER,RR | 18087A | 18087-0123 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-0087 | 1 | ||
| COVER-EXHAUST PIPE | 49107A | 49107-0106 | 1 | ||
| NUT,8MM | 92015 | 92015-1357 | 1 | ||
| COLLAR,8.8X12X10.6 | 92152 | 92152-0082 | 8 | ||
| DAMPER | 92161 | 92161-0135 | 8 | ||
| CLAMP | 92171 | 92171-0059 | 4 | ||
| CLAMP | 92171A | 92171-0593 | 1 | ||
| NUT,CAP,8MM | 92210 | 92210-1132 | 4 |
