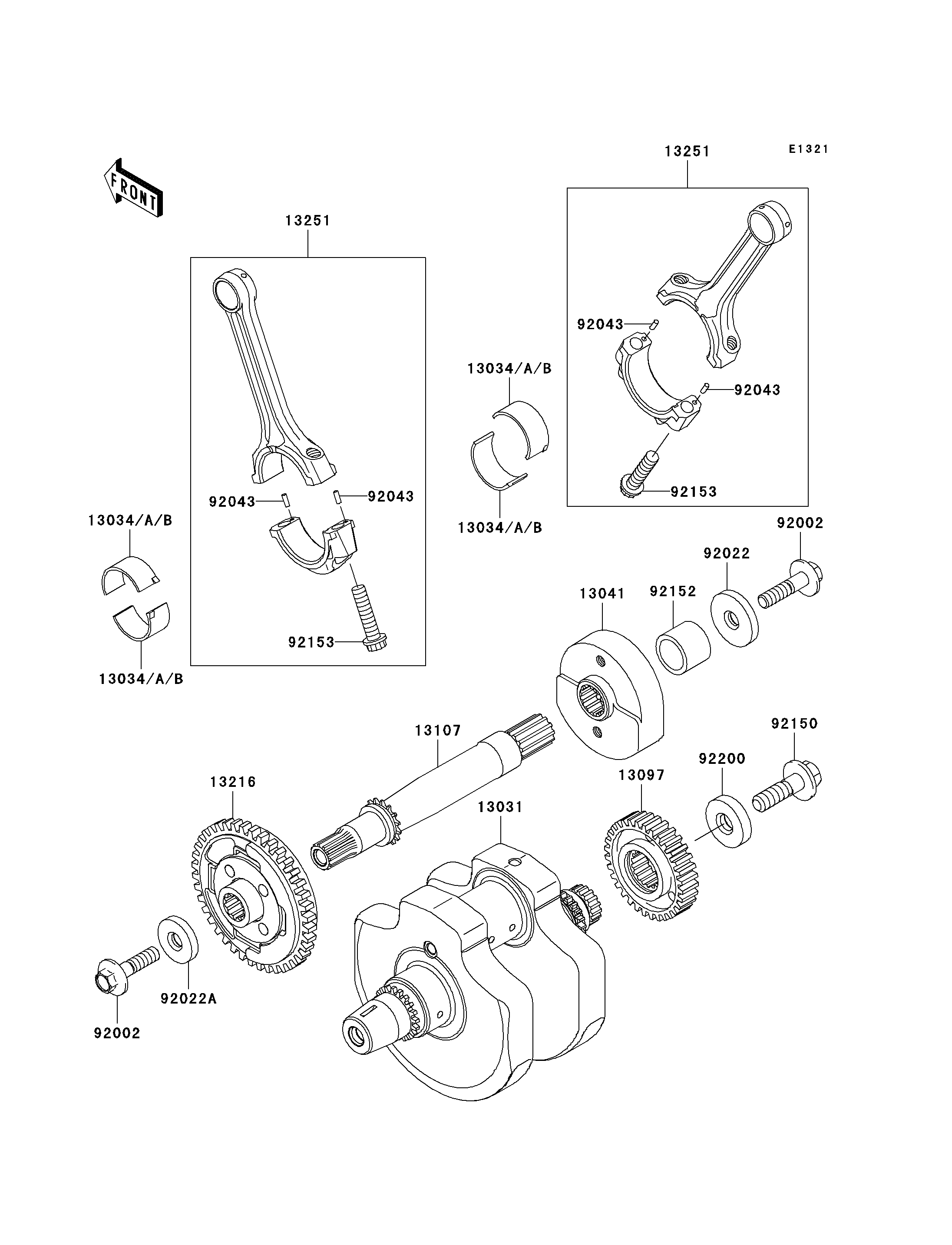

2007 Vulcan 900 Classic LT - Crankshaft
13031
13034
13034
13034
13034
13034A
13034A
13034A
13034A
13034B
13034B
13034B
13034B
13041
13097
13107
13216
13251
13251
92002
92002
92022
92022A
92043
92043
92043
92043
92150
92152
92153
92153
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0058 | 1 | ||
| METAL,CONNECTING ROD,BLUE | 13034 | 13034-1057 | AR | ||
| METAL,CONNECTING ROD,BLACK | 13034A | 13034-1058 | AR | ||
| METAL,CONNECTING ROD,BROWN | 13034B | 13034-1059 | AR | ||
| BALANCER,RH | 13041 | 13041-0009 | 1 | ||
| GEAR-PRIMARY SPUR,38T | 13097 | 13097-0050 | 1 | ||
| SHAFT,BALANCER | 13107 | 13107-0115 | 1 | ||
| GEAR-COMP,BALANCER,LH | 13216 | 13216-0016 | 1 | ||
| ROD-ASSY-CONNECTING,J | 13251 | 13251-0016-JJ | AR | ||
| BOLT,FLANGED,10X40 | 92002 | 92002-1296 | 2 | ||
| WASHER,10X40X6 | 92022 | 92022-1905 | 1 | ||
| WASHER,10X33X6 | 92022A | 92022-1906 | 1 | ||
| PIN,3X8.5 | 92043 | 92043-0033 | 4 | ||
| BOLT,12X40 | 92150 | 92150-1717 | 1 | ||
| COLLAR,23X30X23 | 92152 | 92152-0358 | 1 | ||
| BOLT,CON-ROD,9X38 | 92153 | 92153-1330 | 4 | ||
| WASHER,12X36X8 | 92200 | 92200-1249 | 1 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METAL,CONNECTING ROD,BLUE | |
| REF # | 13034 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| METAL,CONNECTING ROD,BLACK | |
| REF # | 13034A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| METAL,CONNECTING ROD,BROWN | |
| REF # | 13034B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BALANCER,RH | |
| REF # | 13041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-PRIMARY SPUR,38T | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,BALANCER | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-COMP,BALANCER,LH | |
| REF # | 13216 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X40 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X40X6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X33X6 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,3X8.5 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X40 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,23X30X23 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CON-ROD,9X38 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,12X36X8 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
