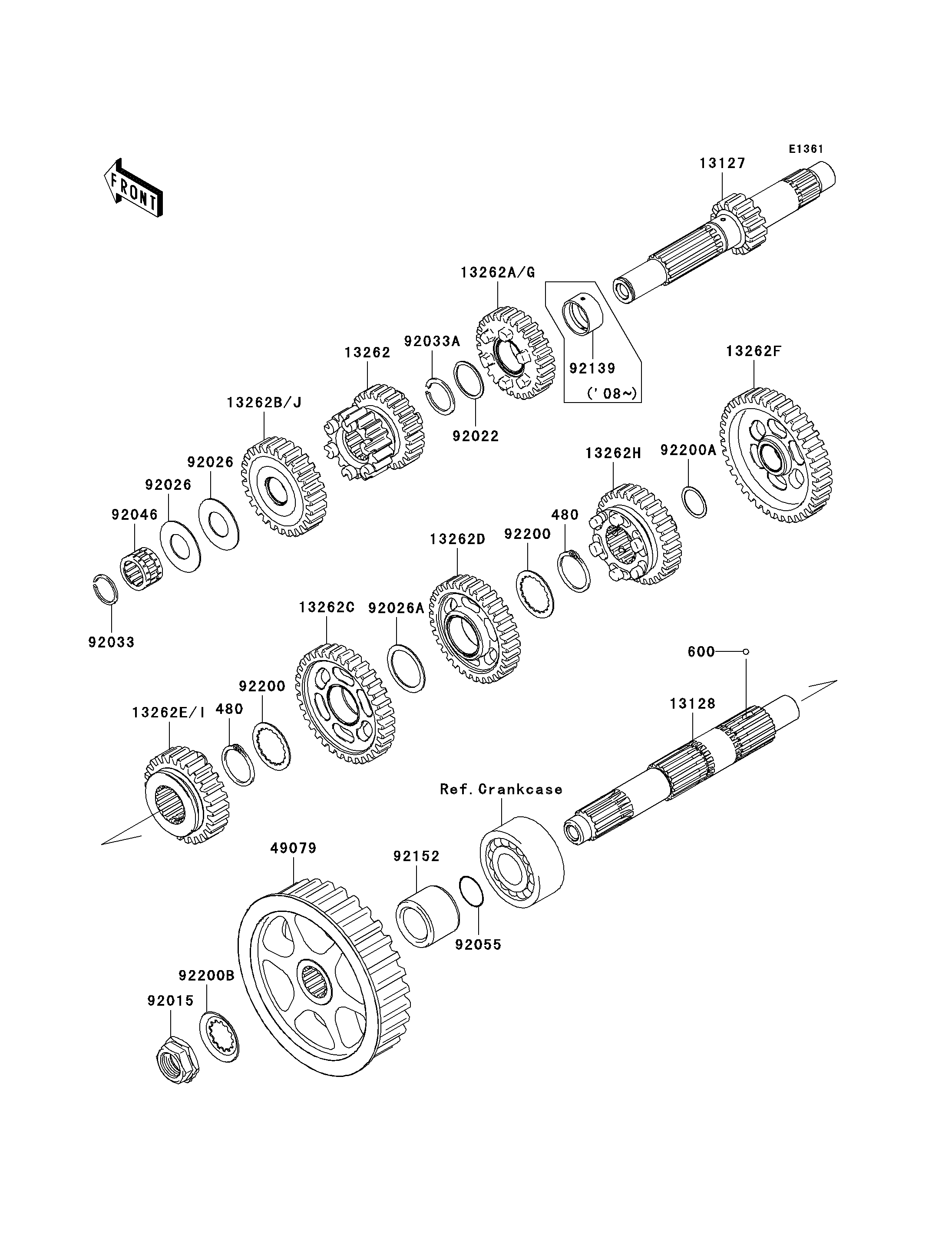

2007 Vulcan 900 Classic LT - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480
600
13127
13128
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262H
49079
92015
92022
92026
92026
92026A
92033
92033A
92046
92055
92152
92200
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 480 480J2900 2
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,13T 13127 13127-0038 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0025 1
GEAR,INPUT 2ND&3RD,18T&25T 13262 13262-0315 1
GEAR,INPUT 4TH,28T 13262A 13262-0316 1
GEAR,INPUT 5TH,27T 13262B 13262-0317 1
GEAR,OUTPUT 2ND,34T 13262C 13262-0319 1
GEAR,OUTPUT 3RD,34T 13262D 13262-0320 1
GEAR,OUTPUT 5TH,26T 13262E 13262-0322 1
GEAR,OUTPUT LOW,39T 13262F 13262-0419 1
GEAR,OUTPUT 4TH,31T 13262H 13262-0497 1
PULLEY-BELT 49079 49079-0016 1
NUT,20MM 92015 92015-1963 1
WASHER,25.3X30X1 92022 92022-161 1
SPACER,20X51X1 92026 92026-0083 2
SPACER,30X38X1.0 92026A 92026-079 1
RING-SNAP,20MM 92033 92033-015 1
RING-SNAP,24MM 92033A 92033-026 1
BEARING-NEEDLE,PK20X27X17X3 92046 92046-1303 1
RING-O 92055 92055-035 1
COLLAR 92152 92152-0335 1
WASHER,30.3X38X1.0 92200 92200-0222 2
WASHER,20.2X25.0X0.5 92200A 92200-0291 1
WASHER 92200B 92200-1065 1
