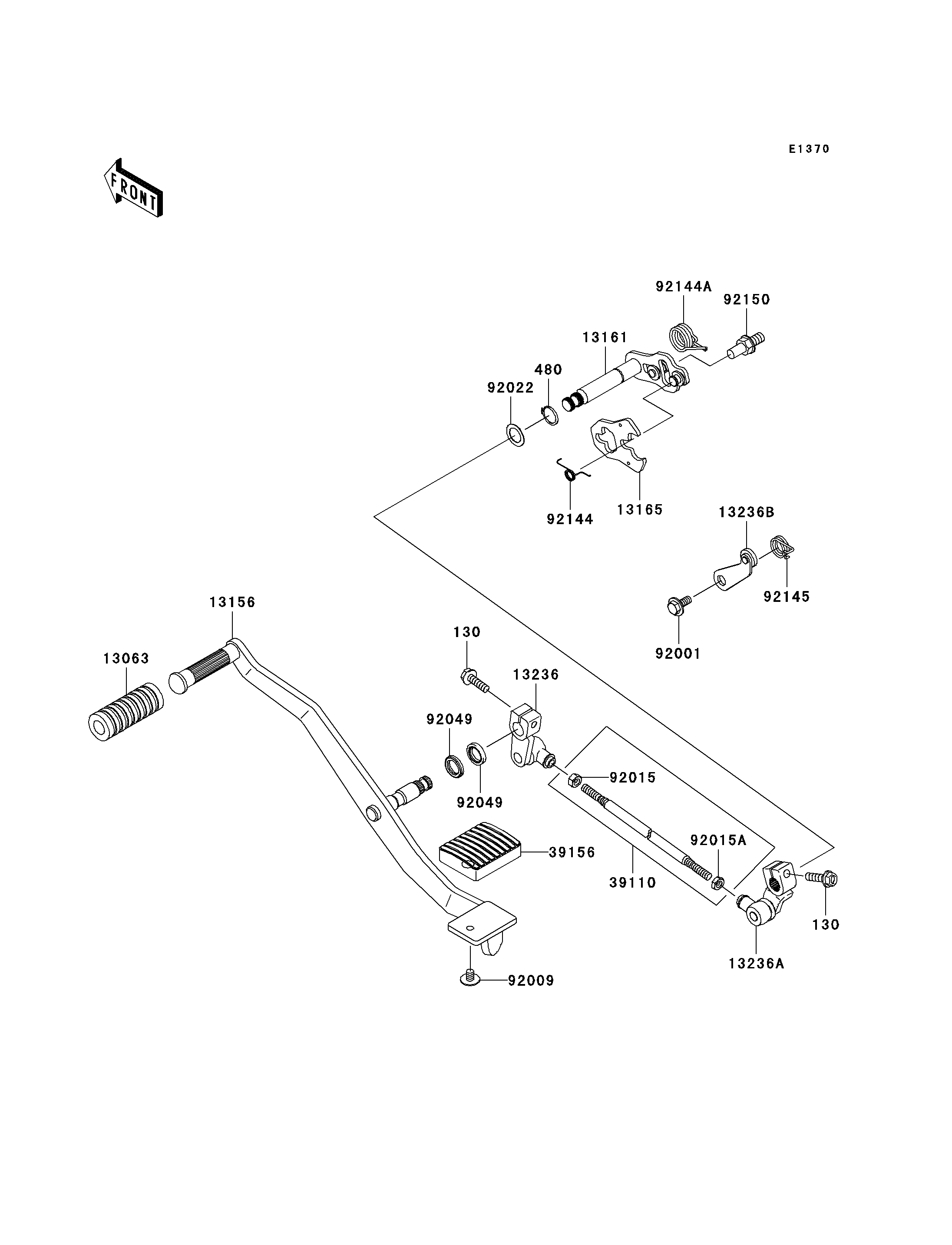

2007 Vulcan 900 Classic LT - Gear Change Mechanism
130
130
480
13063
13156
13161
13165
13236
13236A
13236B
39110
39156
92001
92009
92015
92015A
92022
92049
92049
92144
92144A
92145
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130CB0620 | 2 | ||
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
DAMPER,PEDAL | 13063 | 13063-002 | 1 | ||
LEVER-CHANGE | 13156 | 13156-0063 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0046 | 1 | ||
PAWL,CHANGE LEVER | 13165 | 13165-1151 | 1 | ||
LEVER-COMP | 13236 | 13236-0100 | 1 | ||
LEVER-COMP | 13236A | 13236-0119 | 1 | ||
LEVER-COMP,POSITION | 13236B | 13236-1126 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-1124 | 1 | ||
PAD | 39156 | 39156-1641 | 1 | ||
BOLT,FLANGED,6X14 | 92001 | 92001-1715 | 1 | ||
SCREW,6X8 | 92009 | 92009-1677 | 1 | ||
NUT,6MM | 92015 | 92015-1443 | 1 | ||
NUT,LEFT HANDED,6MM | 92015A | 92015-1444 | 1 | ||
WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
SEAL-OIL,VB13193 | 92049 | 92049-1398 | 2 | ||
SPRING | 92144 | 92144-1029 | 1 | ||
SPRING,CHANGE PEDAL RETURN | 92144A | 92144-1074 | 1 | ||
SPRING,RETURN | 92145 | 92145-0462 | 1 | ||
BOLT,RETURN SPRING | 92150 | 92150-1869 | 1 |
