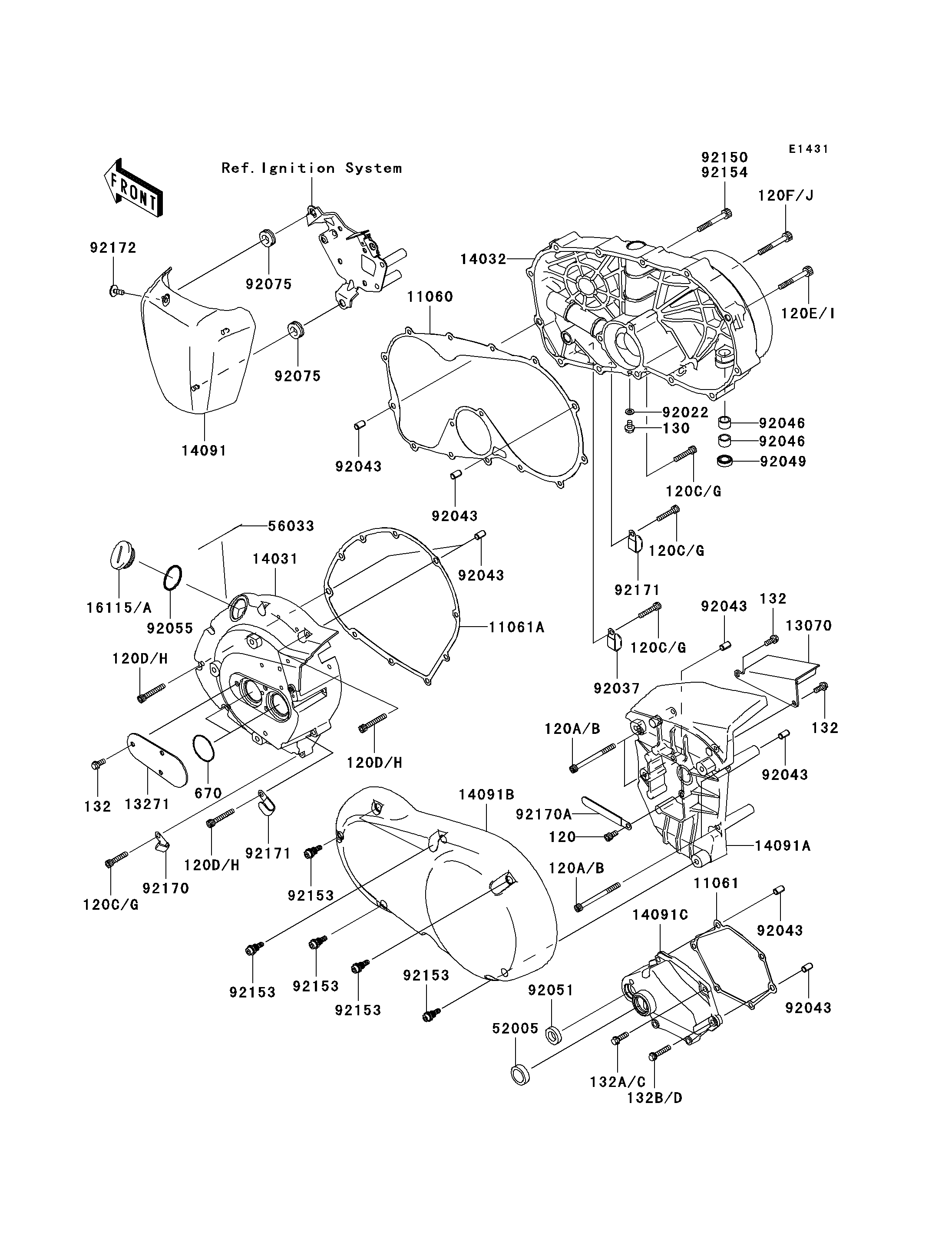

2007 Vulcan 900 Classic LT - Engine Cover(s)
120
120
120B
120B
120B
120B
11060
11060
11061
11061
11061A
11061A
13070
13070
13271
13271
14031
14031
14032
14032
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
16115A
16115A
52005
52005
56033
56033
92022
92022
92037
92037
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92046
92046
92046
92046
92049
92049
92051
92051
92055
92055
92075
92075
92075
92075
92150
92150
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92170
92170
92170A
92170A
92171
92171
92171
92171
92172
92172
120G
120G
120G
120G
120G
120G
120G
120G
120H
120H
120H
120H
120H
120H
120I
120I
120J
120J
130
130
132
132
132
132
132
132
132C
132C
132D
132D
670
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BOLT-SOCKET,6X75 | 120B | 120CB0675 | 4 | ( - VN900BE067870) | |
| GASKET,CLUTCH COVER | 11060 | 11060-1926 | 1 | ||
| GASKET,MECHANISM COVER | 11061 | 11061-0208 | 1 | ||
| GASKET,GENERATOR COVER | 11061A | 11061-0209 | 1 | ||
| GUIDE,BELT | 13070 | 13070-0055 | 1 | ||
| PLATE | 13271 | 13271-0700 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-0056 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-0076 | 1 | ||
| COVER | 14091 | 14091-0289 | 1 | ||
| COVER,PULLEY | 14091A | 14091-0510 | 1 | ||
| COVER,PLATING,LH | 14091B | 14091-0511 | 1 | ||
| COVER,CHANGE MECHANIZM | 14091C | 14091-0633 | 1 | ||
| CAP-OIL FILLER | 16115A | 16115-1063 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| LABEL-MANUAL,OIL CAPACITY | 56033 | 56033-0148 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 8 | ||
| BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
| SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
| DAMPER | 92075 | 92075-1629 | 3 | ||
| BOLT,SOCKET,6X50 | 92150 | 92150-1436 | 1 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-1331 | 6 | ||
| CLAMP,HARNESS | 92170 | 92170-1900 | 1 | ||
| CLAMP | 92170A | 92170-1925 | 1 | ||
| CLAMP | 92171 | 92171-0739 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0101 | 1 | ||
| BOLT-SOCKET,6X30 | 120G | 120R0630 | 9 | ||
| BOLT-SOCKET,6X40 | 120H | 120R0640 | 4 | ||
| BOLT-SOCKET,6X50 | 120I | 120R0650 | 10 | ||
| BOLT-SOCKET,6X65 | 120J | 120R0665 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 5 | ||
| BOLT-FLANGED-SMALL,6X20 | 132C | 132BB0620 | 1 | ( - VN900BE067870) | |
| BOLT-FLANGED-SMALL,6X30 | 132D | 132BB0630 | 5 | ( - VN900BE067870) | |
| O RING | 670 | 670B3034 | 2 |
| BOLT-SOCKET,6X12 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X75 | |
| REF # | 120B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | ( - VN900BE067870) |
| GASKET,CLUTCH COVER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,MECHANISM COVER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COVER | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,BELT | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-GENERATOR | |
| REF # | 14031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CLUTCH | |
| REF # | 14032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PULLEY | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PLATING,LH | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CHANGE MECHANIZM | |
| REF # | 14091C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,OIL CAPACITY | |
| REF # | 56033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X12X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=45 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,HK1210 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB12205.5 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB13225.5 | |
| REF # | 92051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,31.7X2.4 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X50 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X30 | |
| REF # | 120G |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X40 | |
| REF # | 120H |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X50 | |
| REF # | 120I |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X65 | |
| REF # | 120J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - VN900BE067870) |
| BOLT-FLANGED-SMALL,6X30 | |
| REF # | 132D |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | ( - VN900BE067870) |
| O RING | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
