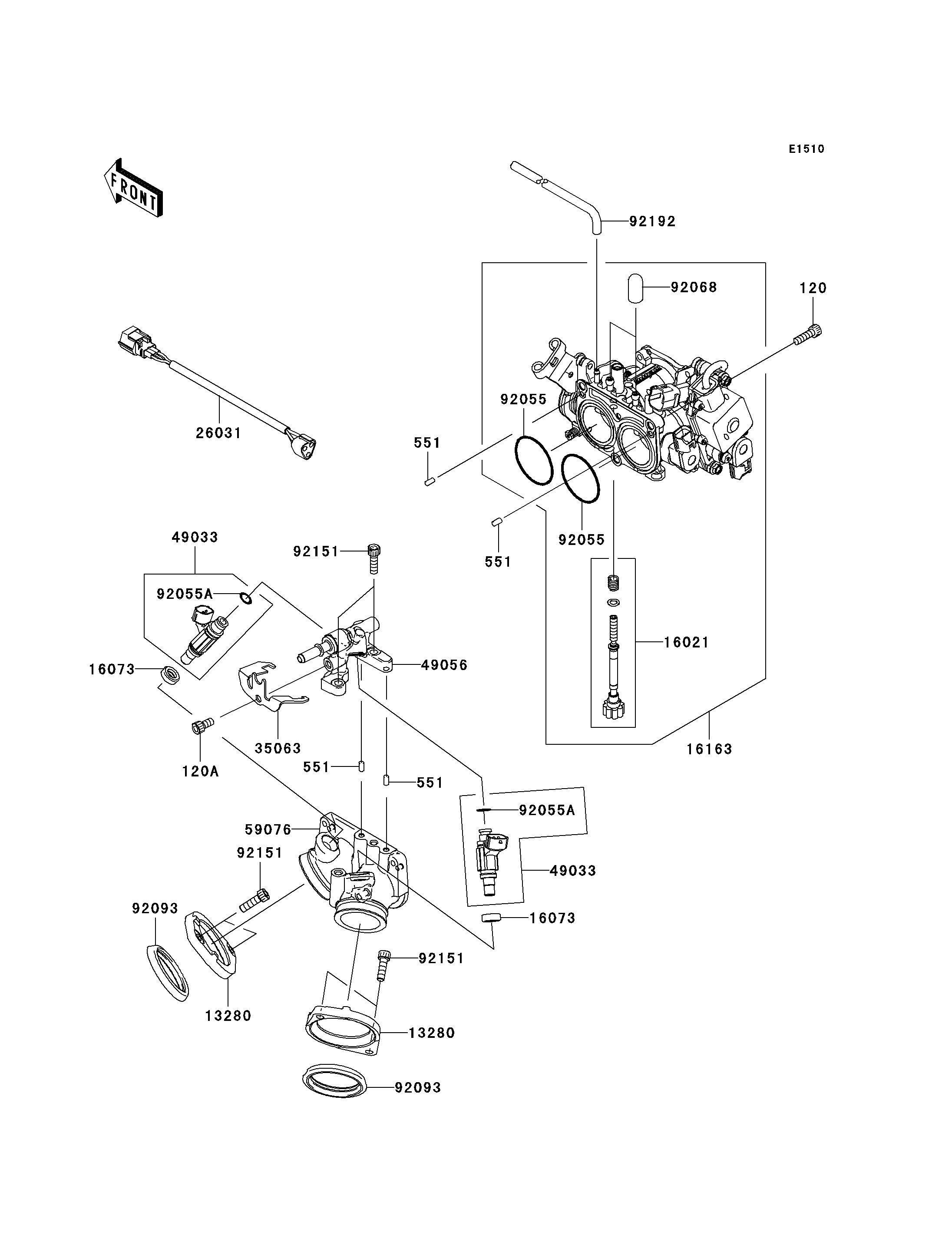

2007 Vulcan 900 Classic LT - Throttle(D6F/D7F)
120
120A
551
551
551
551
13280
13280
16021
16073
16073
16163
26031
35063
49033
49033
49056
59076
92055
92055
92055A
92055A
92068
92093
92093
92151
92151
92151
92192
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X20 | 120 | 120CA0620 | 3 | ||
| BOLT-SOCKET,6X12 | 120A | 120CB0612 | 1 | ||
| PIN-DOWEL | 551 | 551R0408 | 4 | ||
| HOLDER | 13280 | 13280-1154 | 2 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-0016 | 1 | ||
| INSULATOR | 16073 | 16073-3707 | 2 | ||
| THROTTLE-ASSY,TTK34 | 16163 | 16163-0076 | 1 | ||
| HARNESS | 26031 | 26031-0472 | 1 | ||
| STAY | 35063 | 35063-0240 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0011 | 2 | ||
| PIPE-INJECTION | 49056 | 49056-0011 | 1 | ||
| MANIFOLD-INTAKE | 59076 | 59076-0003 | 1 | ||
| RING-O | 92055 | 92055-0118 | 2 | ||
| RING-O,INJECTION NOZZLE | 92055A | 92055-1622 | 2 | ||
| PLUG,12X25 | 92068 | 92068-006 | 2 | ||
| SEAL | 92093 | 92093-0072 | 2 | ||
| BOLT,SOCKET,6X20 | 92151 | 92151-3774 | 6 | ||
| TUBE,SENSOR-THROBO | 92192 | 92192-0308 | 1 |
| BOLT-SOCKET,6X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X12 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| THROTTLE-ASSY,TTK34 | |
| REF # | 16163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-INJECTION | |
| REF # | 49033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE-INJECTION | |
| REF # | 49056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-INTAKE | |
| REF # | 59076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,INJECTION NOZZLE | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,12X25 | |
| REF # | 92068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X20 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,SENSOR-THROBO | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
