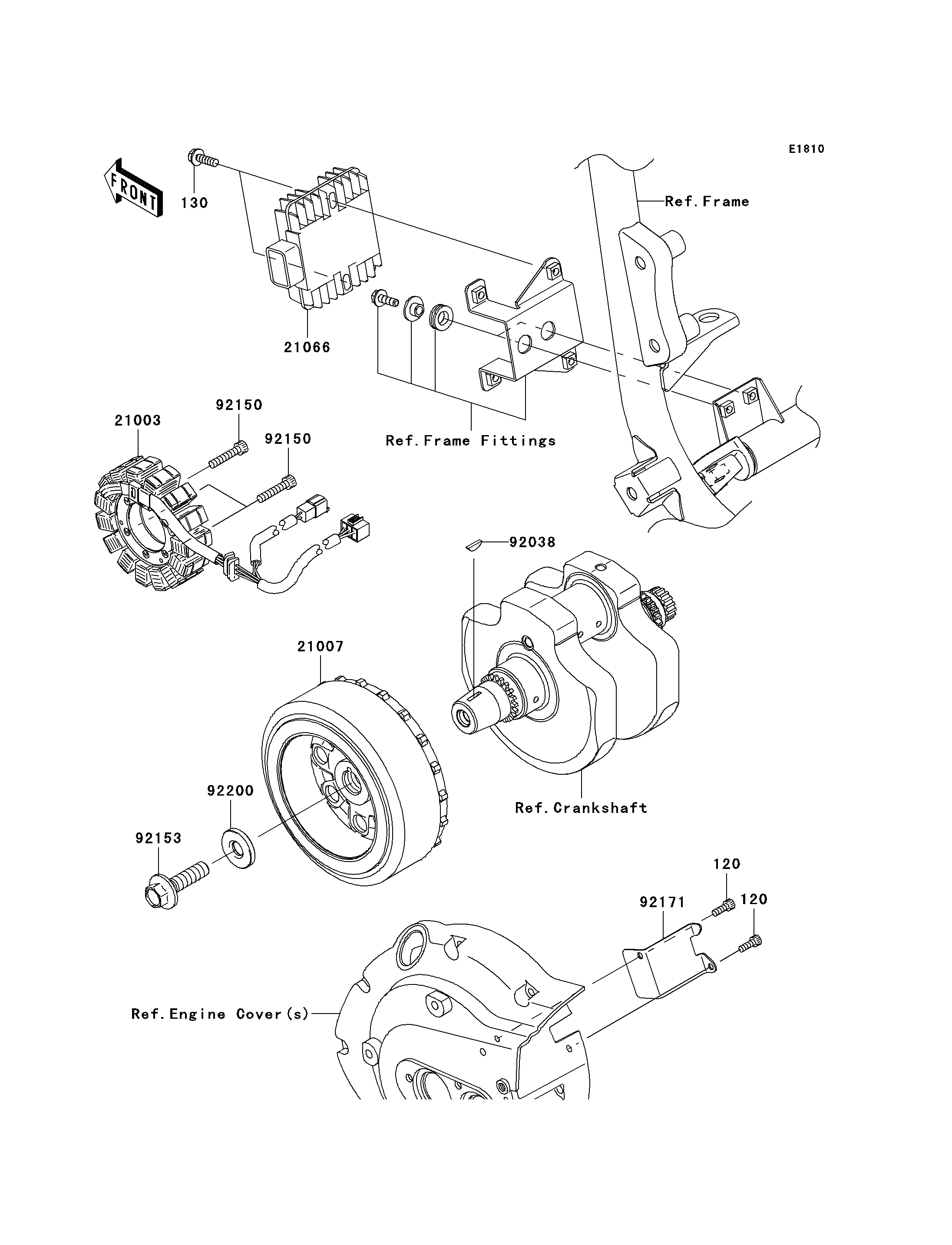

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X14 120 120CA0514 2
BOLT-FLANGED,6X20 130 130BB0620 2
STATOR 21003 21003-0053 1
ROTOR 21007 21007-0076 1
REGULATOR-VOLTAGE 21066 21066-1127 1
KEY,WOODRUFF 92038 92038-001 1
BOLT,SOCKET,6X30 92150 92150-1433 3
BOLT,FLANGED,12X45 92153 92154-1357 1
CLAMP 92171 92171-0563 1
WASHER,12X33X5 92200 92200-0220 1
