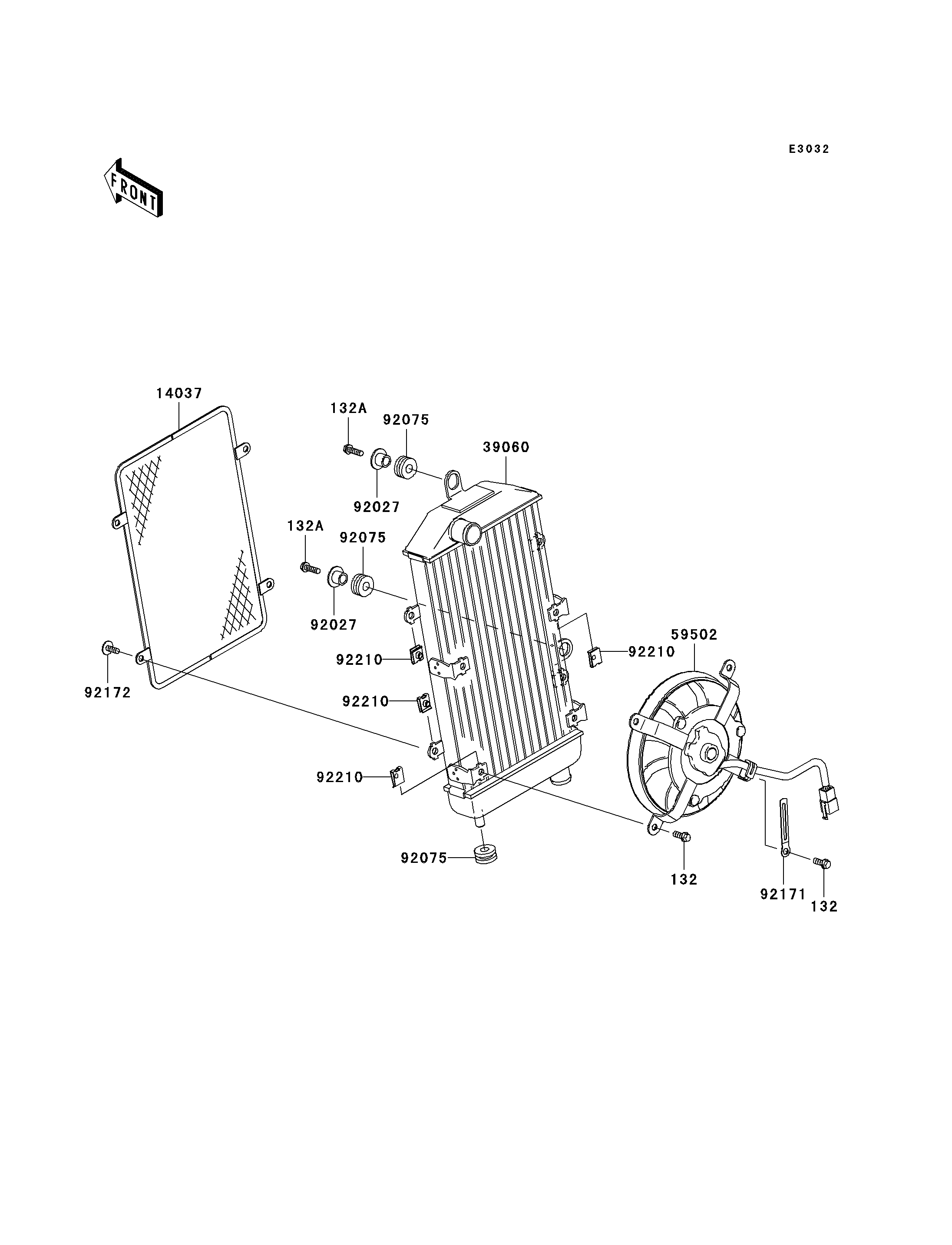

2007 Vulcan 900 Classic LT - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
14037
39060
59502
92027
92027
92075
92075
92075
92171
92172
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BB0614 4
BOLT-FLANGED-SMALL,6X20 132A 132BB0620 2
SCREEN 14037 14037-0046 1
RADIATOR 39060 39060-0029 1
FAN-ASSY 59502 59502-0023 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2
DAMPER 92075 92075-1690 3
CLAMP 92171 92171-0791 1
SCREW,6X14 92172 92172-0004 4
NUT 92210 92210-1323 8
