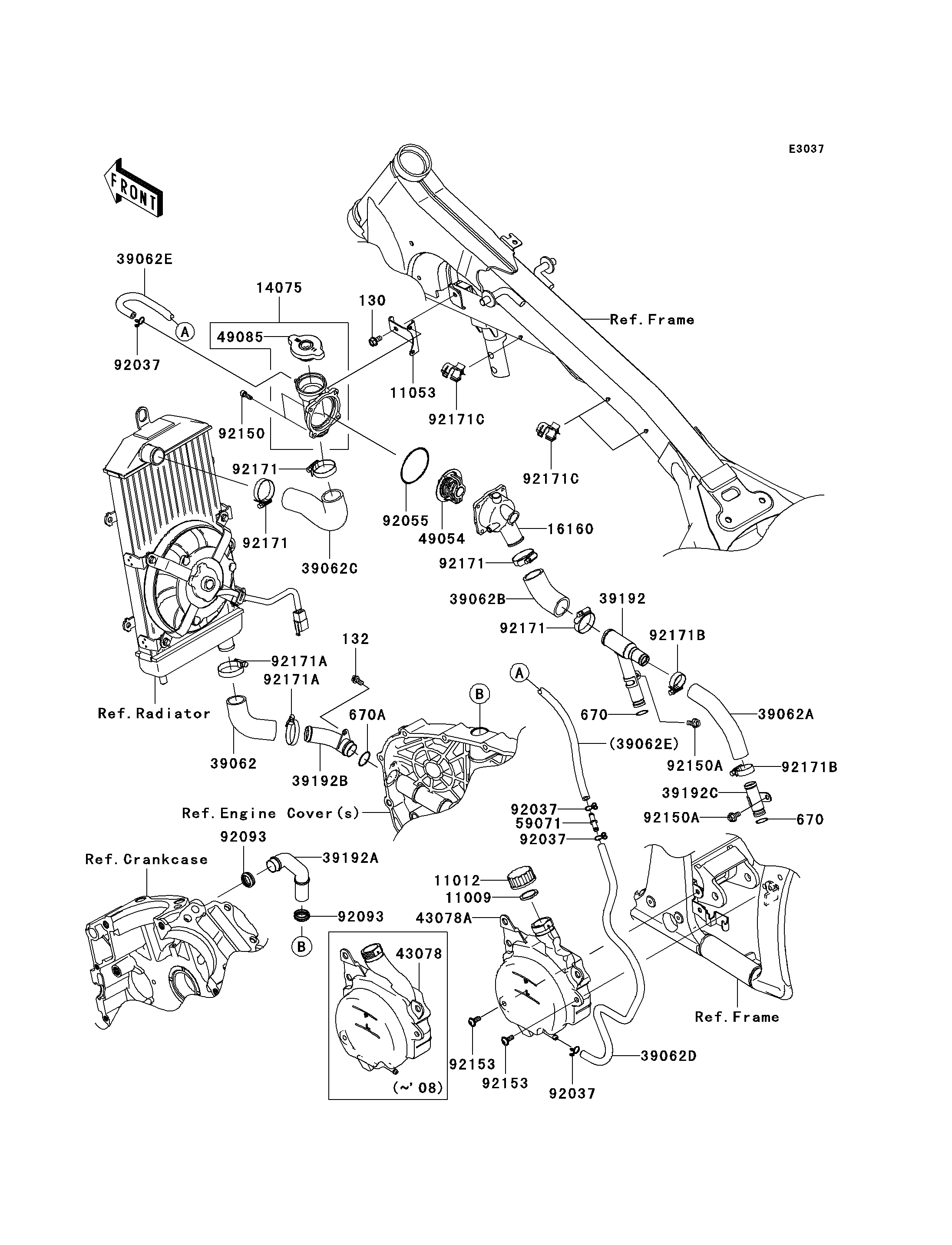

2007 Vulcan 900 Classic LT - Water Pipe
130
132
670
670
670A
11009
11012
11053
14075
16160
39062
39062A
39062B
39062C
39062D
39062E
39192
39192A
39192B
39192C
43078
49054
49085
59071
92037
92037
92037
92037
92055
92093
92093
92150
92150A
92150A
92153
92153
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14 | 130 | 130BA0614 | 1 | ||
BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 | ||
O RING,14MM | 670 | 670B2014 | 2 | ||
O RING,21MM | 670A | 670B2021 | 1 | ||
GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
CAP | 11012 | 11012-1084 | 1 | ||
BRACKET,THERMO CASE | 11053 | 11053-1989 | 1 | ||
CAP-ASSY | 14075 | 14075-0001 | 1 | ||
BODY,THERMOSTAT | 16160 | 16160-0095 | 1 | ||
HOSE-COOLING,PIPE-WATER PUMP | 39062 | 39062-0009 | 1 | ||
HOSE-COOLING,RR HEAD-PIPE | 39062A | 39062-0118 | 1 | ||
HOSE-COOLING,PIPE-THERMO | 39062B | 39062-0120 | 1 | ||
HOSE-COOLING,THERMO-RAD | 39062C | 39062-0121 | 1 | ||
HOSE-COOLING,RESERVOIR-JOINT | 39062D | 39062-0124 | 1 | ||
HOSE-COOLING,JOINT-THERMO | 39062E | 39062-0132 | 1 | ||
PIPE-WATER,FR HEAD | 39192 | 39192-0042 | 1 | ||
PIPE-WATER | 39192A | 39192-0043 | 1 | ||
PIPE-WATER | 39192B | 39192-0044 | 1 | ||
PIPE-WATER,RR HEAD | 39192C | 39192-0048 | 1 | ||
RESERVOIR | 43078 | 43078-0029 | 1 | ||
THERMOSTAT | 49054 | 49054-1067 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
JOINT | 59071 | 59071-3717 | 1 | ||
CLAMP,TUBE | 92037 | 92037-147 | 4 | ||
RING-O,53.5X2.6 | 92055 | 92055-112 | 1 | ||
SEAL | 92093 | 92093-1427 | 2 | ||
BOLT,SOCKET,5X14 | 92150 | 92150-1180 | 4 | ||
BOLT,FLANGED,6X12 | 92150A | 92150-1826 | 2 | ||
BOLT,SOCKET,6X15 | 92153 | 92153-1451 | 2 | ||
CLAMP | 92171 | 92171-0179 | 4 | ||
CLAMP | 92171A | 92171-0261 | 2 | ||
CLAMP | 92171B | 92171-0338 | 2 | ||
CLAMP,DIA=15 | 92171C | 92171-1424 | 3 |
