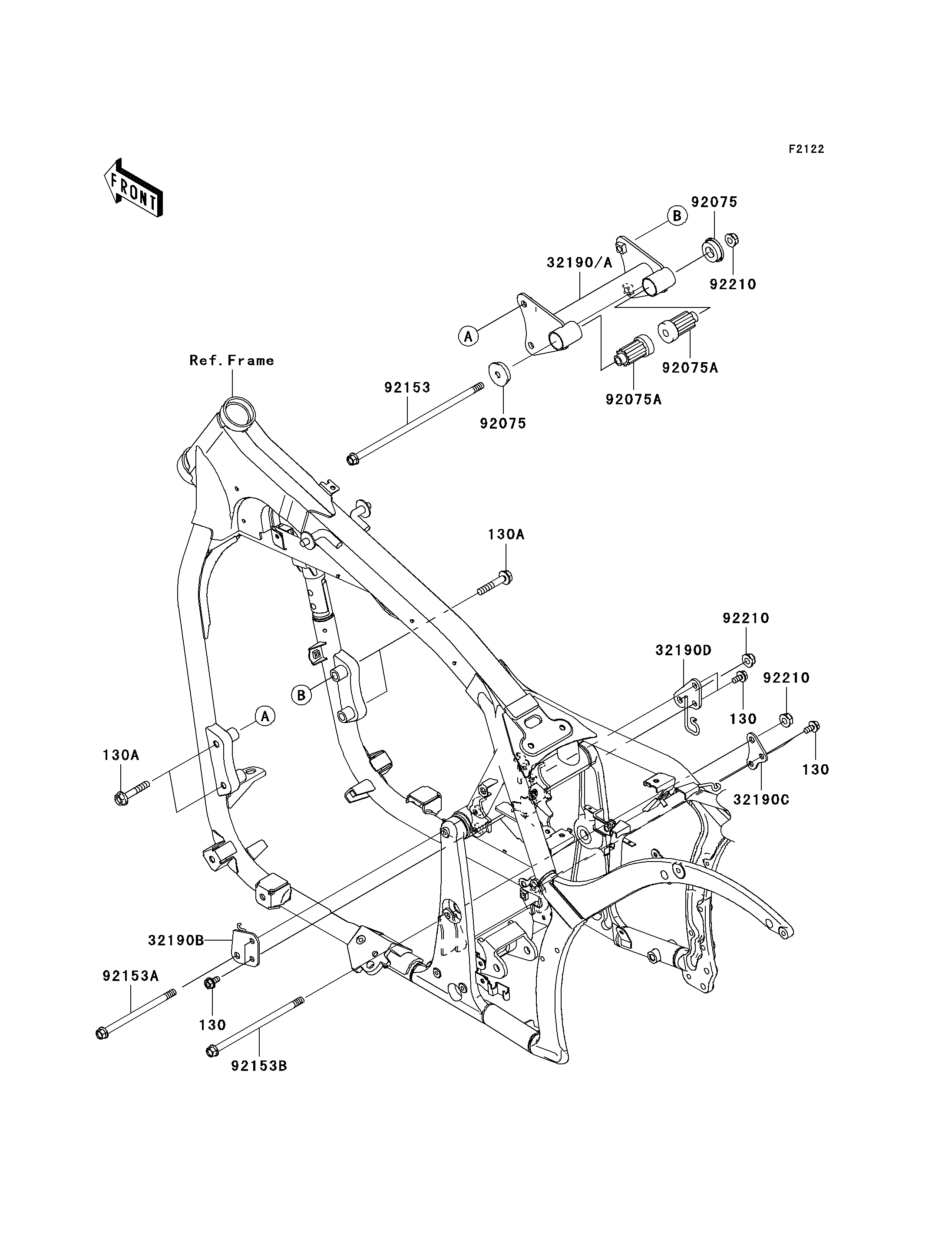

2007 Vulcan 900 Classic LT - Engine Mount
130
130
130
130A
130A
32190
32190B
32190C
32190D
92075
92075
92075A
92075A
92153
92153A
92153B
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X16 | 130 | 130BB0816 | 6 | ||
| BOLT-FLANGED,10X55 | 130A | 130BB1055 | 4 | ||
| BRACKET-ENGINE,FR,F.S.BLACK | 32190 | 32190-0229-11E | 1 | ||
| BRACKET-ENGINE,RR,LH,UPP | 32190B | 32190-0274 | 1 | ||
| BRACKET-ENGINE,RR,RH,LWR | 32190C | 32190-0275 | 1 | ||
| BRACKET-ENGINE,RR,RH,UPP | 32190D | 32190-0276 | 1 | ||
| DAMPER,ENGINE MOUNT | 92075 | 92075-1738 | 2 | ||
| DAMPER,ENGINE MOUNT,MAIN | 92075A | 92075-1739 | 2 | ||
| BOLT,FLANGED,10X285 | 92153 | 92153-1909 | 1 | ||
| BOLT,FLANGED,10X158 | 92153A | 92153-1910 | 1 | ||
| BOLT,FLANGED,10X198 | 92153B | 92153-1911 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1081 | 3 |
