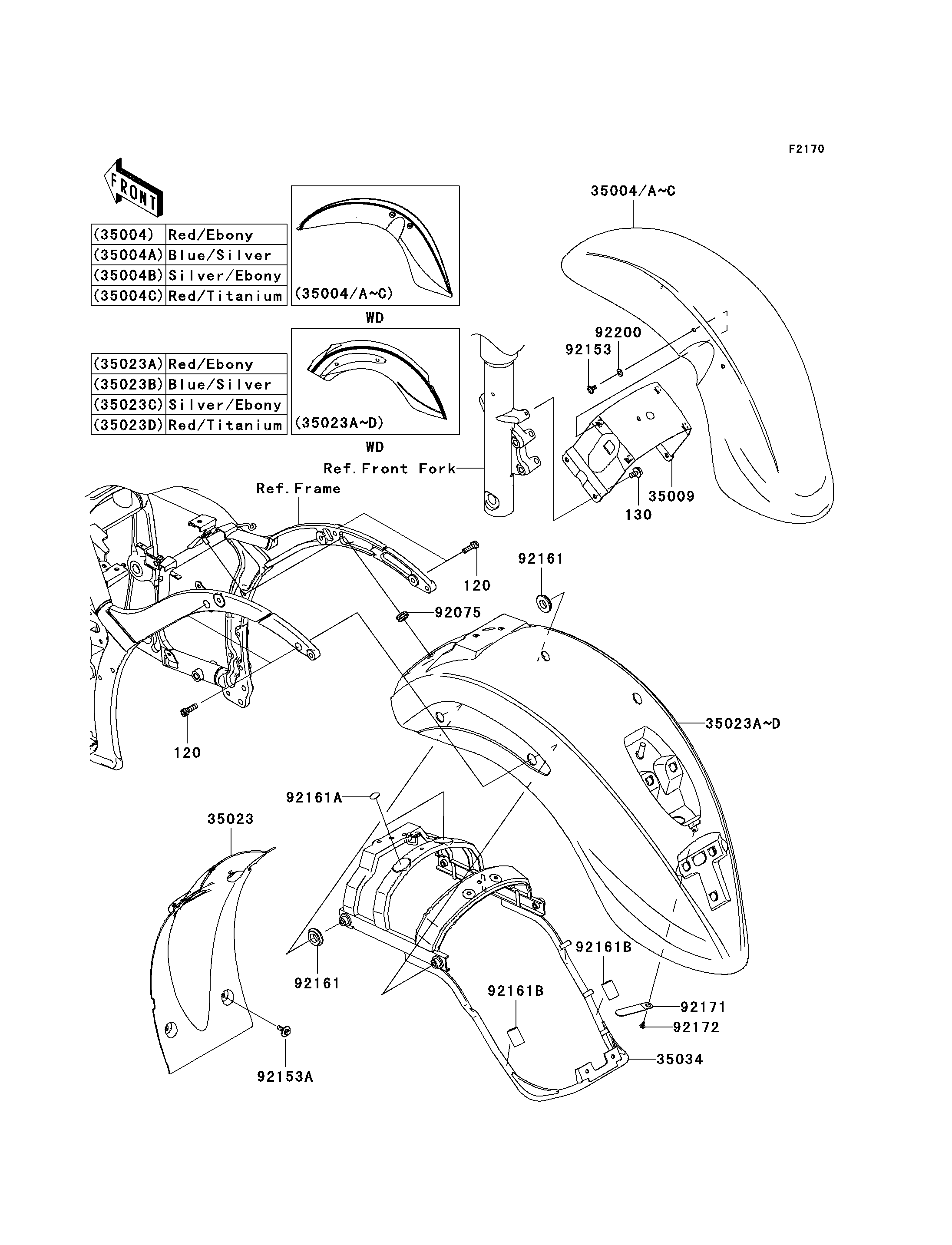

2007 Vulcan 900 Classic LT - Fenders(-JKAVN2D1 7A011496)
35004B
35004B
35004C
35004C
35009
35009
35023
35023
35023C
35023C
35023D
35023D
35034
35034
92075
92075
92153
92153
92153A
92153A
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92171
92171
92172
92172
92200
92200
120
120
120
120
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,SILVER/EBONY | 35004B | 35004-5268-686 | 1 | ||
| FENDER-FRONT,RED/TITANIUM | 35004C | 35004-5269-10W | 1 | ||
| BRACE,FRONT FENDER | 35009 | 35009-0014 | 1 | ||
| FENDER-REAR,INNER | 35023 | 35023-0073 | 1 | ||
| FENDER-REAR,SILVER/EBONY | 35023C | 35023-5130-686 | 1 | ||
| FENDER-REAR,RED/TITANIUM | 35023D | 35023-5131-10W | 1 | ||
| REINFORCE,REAR FENDER | 35034 | 35034-0087 | 1 | ||
| DAMPER | 92075 | 92075-1067 | 1 | ||
| BOLT,SOCKET,6X16 | 92153 | 92153-0817 | 4 | ||
| BOLT,6X20 | 92153A | 92153-1599 | 4 | ||
| DAMPER | 92161 | 92161-0375 | 2 | ||
| DAMPER | 92161A | 92161-0406 | 2 | ||
| DAMPER | 92161B | 92161-0459 | 2 | ||
| CLAMP | 92171 | 92171-0181 | 1 | ||
| SCREW,TAPPING,4X10 | 92172 | 92172-0172 | 1 | ||
| WASHER,6.5X14X1 | 92200 | 92200-1388 | 4 | ||
| BOLT-SOCKET,8X25 | 120 | 120CA0825 | 4 | ||
| BOLT-FLANGED,8X14 | 130 | 130BB0814 | 4 |
| FENDER-FRONT,SILVER/EBONY | |
| REF # | 35004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,RED/TITANIUM | |
| REF # | 35004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACE,FRONT FENDER | |
| REF # | 35009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,INNER | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,SILVER/EBONY | |
| REF # | 35023C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,RED/TITANIUM | |
| REF # | 35023D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REINFORCE,REAR FENDER | |
| REF # | 35034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X14X1 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
