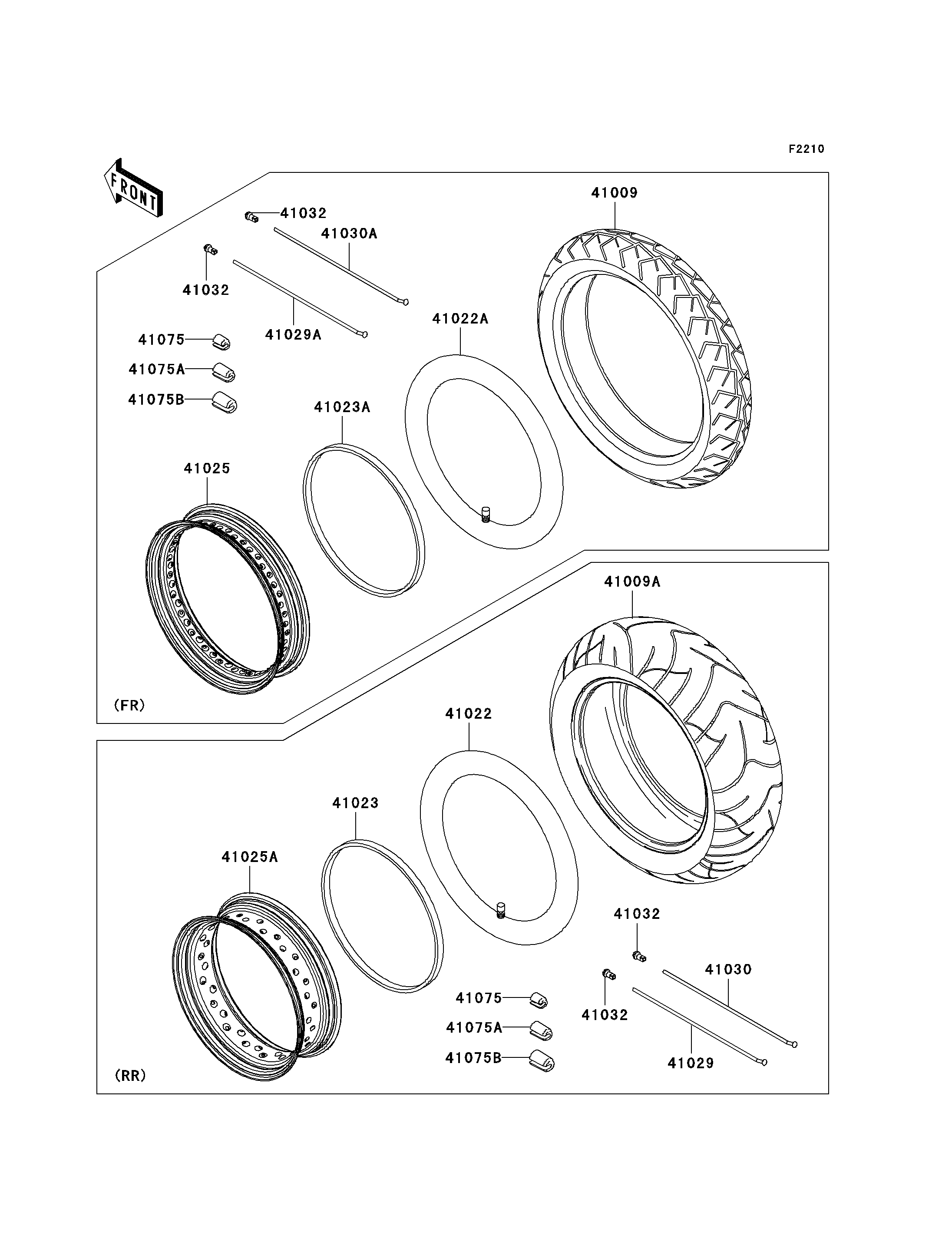

2007 Vulcan 900 Classic LT - Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41030
41030A
41032
41032
41032
41032
41075
41075
41075A
41075A
41075B
41075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,130/90-16 67H,D404F(D) 41009 41009-0103 1
TIRE,RR,180/70-15 76H,D404(D) 41009A 41009-0104 1
TUBE-TIRE,180/70-15(D) 41022 41022-0024 1
TUBE-TIRE,130/90-16(D) 41022A 41022-1192 1
BAND-RIM,180/70-15(D) 41023 41023-0008 1
BAND-RIM,140/90-16(D) 41023A 41023-1102 1
RIM,FR,3.00X16 41025 41025-0046 1
RIM,RR,4.50X15 41025A 41025-0062 1
SPOKE-INNER,RR,92.5MMX109.5D 41029 41029-0022 18
SPOKE-INNER,FR,154.5MMX117D 41029A 41029-0026 24
SPOKE-OUTER,RR,91.5MMX109D 41030 41030-0008 18
SPOKE-OUTER,FR,151.5MMX116D 41030A 41030-0012 24
NIPPLE-SPOKE 41032 41032-0005 84
BALANCER-WHEEL,10G 41075 41075-0011 AR
BALANCER-WHEEL,20G 41075A 41075-0012 AR
BALANCER-WHEEL,30G 41075B 41075-0013 AR
