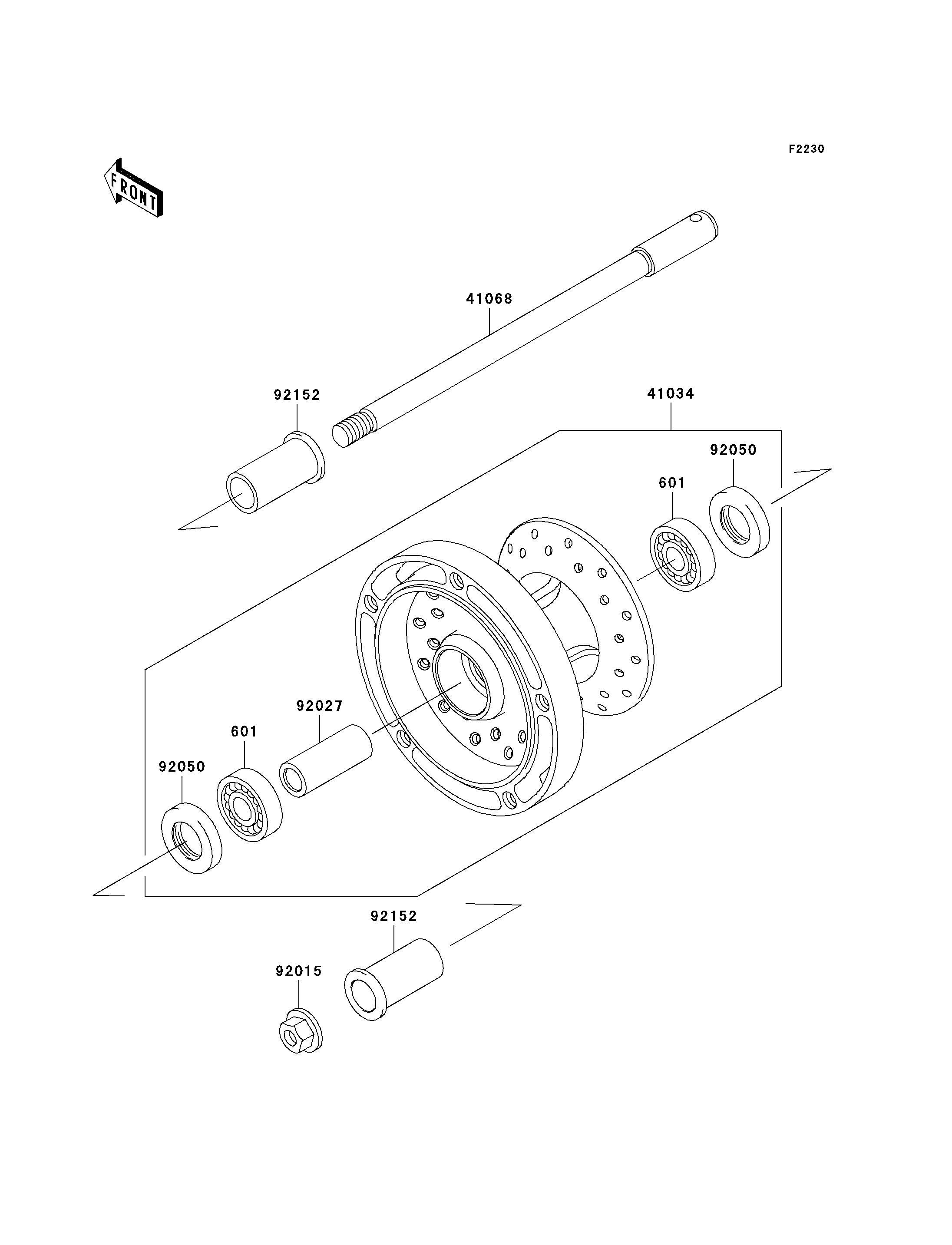

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6004UG 601 601B6004UG 2
DRUM-ASSY,FRONT BRAKE 41034 41034-0029 1
AXLE,FR 41068 41068-0058 1
NUT,FLANGED,18MM 92015 92015-1993 1
COLLAR,20.2X28X70 92027 92027-1752 1
SEAL-OIL,RR HUB COUPLING 92050 92050-060 2
COLLAR,FR AXLE,L=53 92152 92152-0349 2
