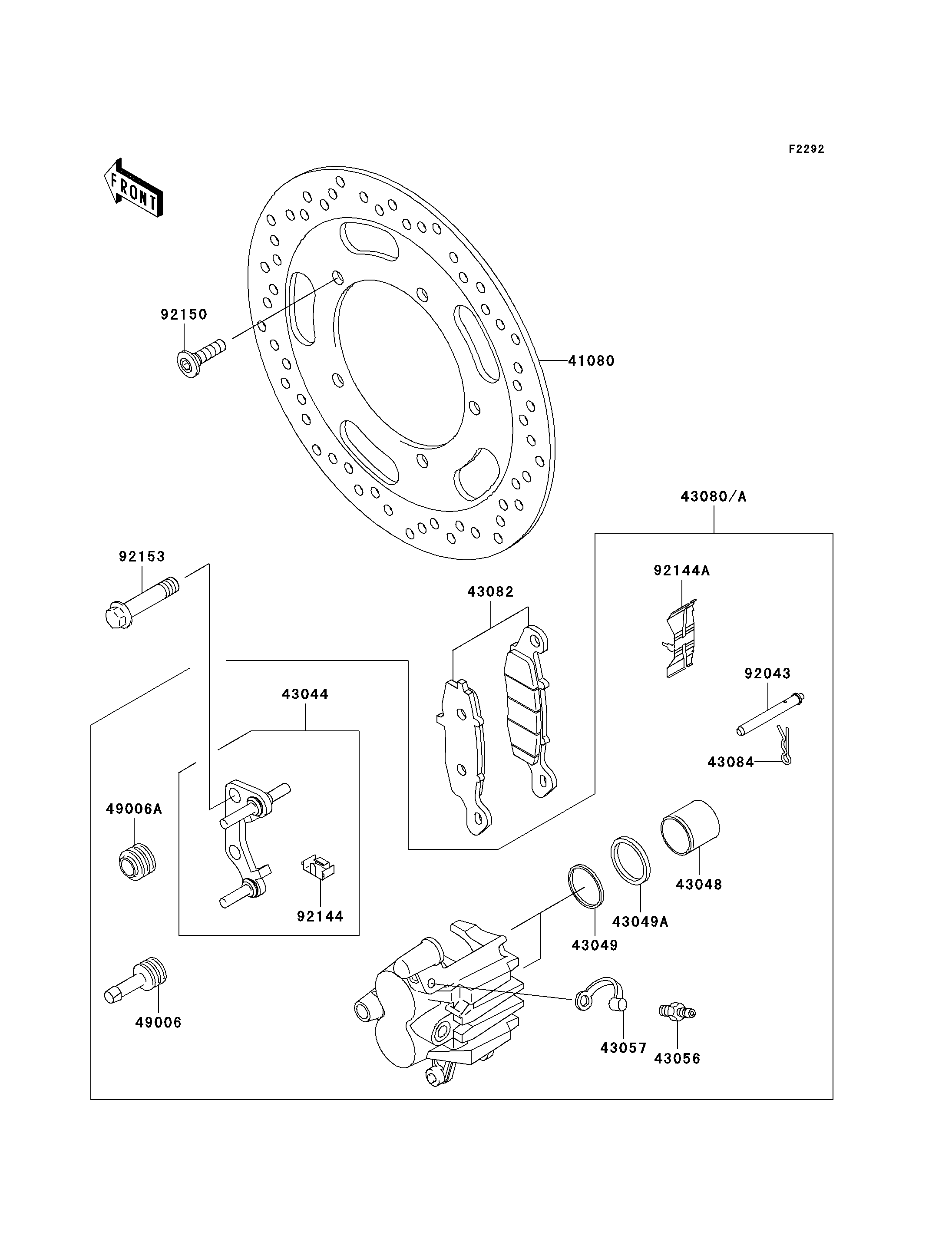

2007 Vulcan 900 Classic LT - Front Brake
41080
43044
43048
43049
43049A
43056
43057
43080
43082
43084
49006
49006A
92043
92144
92144A
92150
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,FR,SILVER | 41080 | 41080-0095-CM | 1 | ||
| HOLDER-COMP-CALIPER,FR,LH | 43044 | 43044-1115 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-1052 | 2 | ||
| PACKING,PISTON | 43049 | 43049-1055 | 2 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1096 | 2 | ||
| BREATHER-BRAKE | 43056 | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 1 | ||
| CALIPER-SUB-ASSY,FR,LH,BLACK | 43080 | 43080-0044-DJ | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-0059 | 1 | ||
| CLAMP,PAD | 43084 | 43084-003 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1054 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1095 | 1 | ||
| PIN,PAD | 92043 | 92043-1489 | 1 | ||
| SPRING,STOPPER | 92144 | 92144-1831 | 1 | ||
| SPRING,PAD,LH | 92144A | 92144-1832 | 1 | ||
| BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 5 | ||
| BOLT,FLANGED,10X47 | 92153 | 92153-0740 | 2 |
