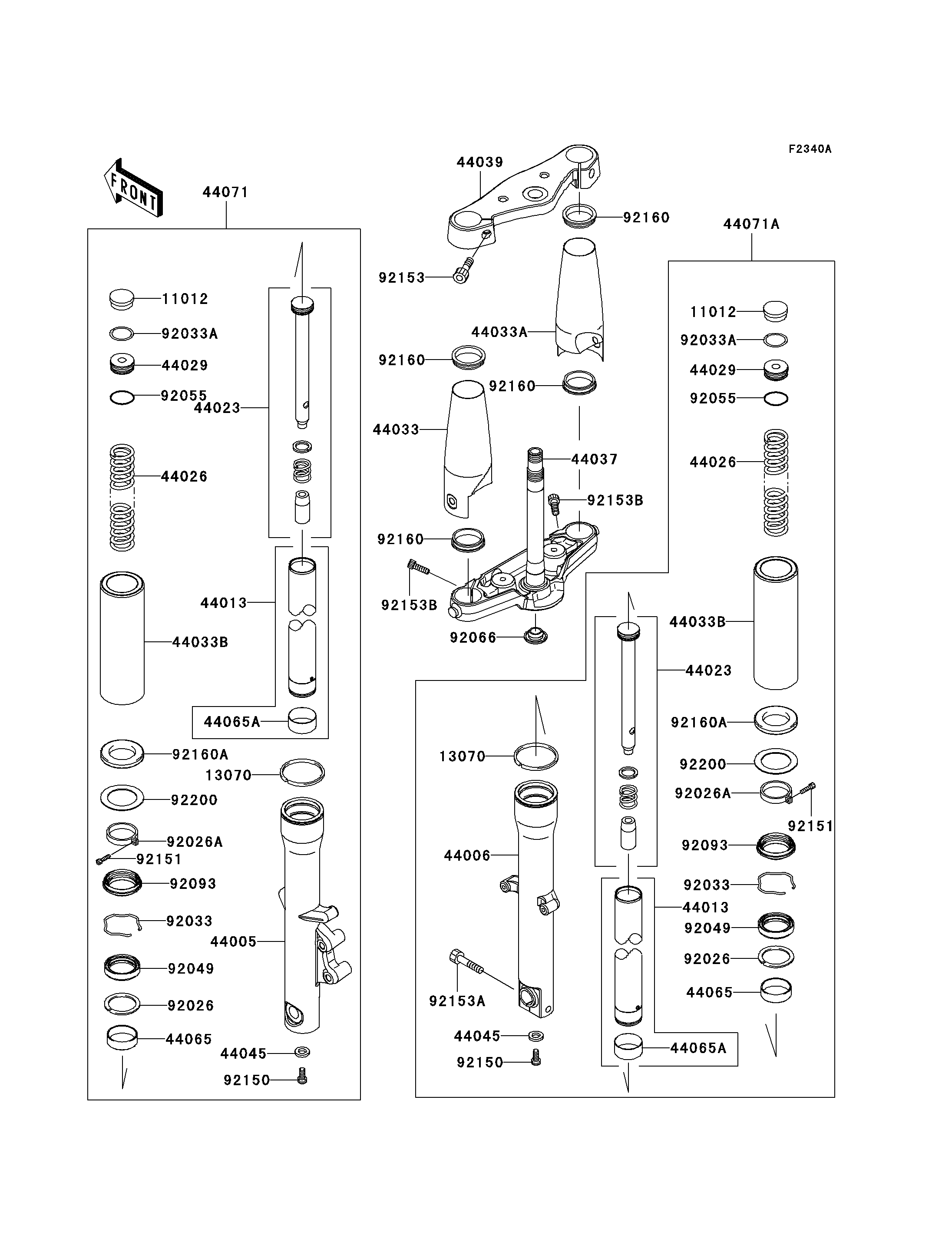

2007 Vulcan 900 Classic LT - Front Fork(JKAVN2D1 7A010828-)
11012
11012
13070
13070
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44033
44033A
44033B
44033B
44037
44039
44045
44045
44065
44065
44065A
44065A
44071
44071A
92026
92026
92026A
92026A
92033
92033
92033A
92033A
92049
92049
92055
92055
92066
92093
92093
92150
92150
92151
92151
92153
92153A
92153B
92153B
92160
92160
92160
92160
92160A
92160A
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,FORK TOP | 11012 | 11012-1618 | 2 | ||
GUIDE | 13070 | 13070-0056 | 2 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-0043 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-0043 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-0049 | 2 | ||
CYLINDER-SET-FORK | 44023 | 44023-0042 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-0074 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-0008 | 2 | ||
COVER-FORK,LH | 44033 | 44033-0035 | 1 | ||
COVER-FORK,RH | 44033A | 44033-0037 | 1 | ||
COVER-FORK | 44033B | 44033-0039 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-0068 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-0062 | 1 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
BUSHING-FRONT FORK | 44065 | 44065-0019 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065A | 44065-1087 | 2 | ||
DAMPER-ASSY,FORK,LH | 44071 | 44071-0316 | 1 | ||
DAMPER-ASSY,FORK,RH | 44071A | 44071-0317 | 1 | ||
SPACER,FORK | 92026 | 92026-0090 | 2 | ||
SPACER | 92026A | 92026-1515 | 2 | ||
RING-SNAP | 92033 | 92033-1222 | 2 | ||
RING-SNAP,SPRING SEAT | 92033A | 92033-1223 | 2 | ||
SEAL-OIL | 92049 | 92049-0058 | 2 | ||
RING-O,SPRING SEAT | 92055 | 92055-1363 | 2 | ||
PLUG | 92066 | 92066-0078 | 1 | ||
SEAL,DUST | 92093 | 92093-0035 | 2 | ||
BOLT,SOCKET,8X18 | 92150 | 92150-1432 | 2 | ||
BOLT,SOCKET,4X16 | 92151 | 92151-1356 | 2 | ||
BOLT,SOCKET,8X30 | 92153 | 92153-0500 | 2 | ||
BOLT | 92153A | 92153-0533 | 1 | ||
BOLT,SOCKET,10X25 | 92153B | 92153-1376 | 2 | ||
DAMPER | 92160 | 92160-1892 | 4 | ||
DAMPER | 92160A | 92160-1927 | 2 | ||
WASHER | 92200 | 92200-1417 | 2 |
