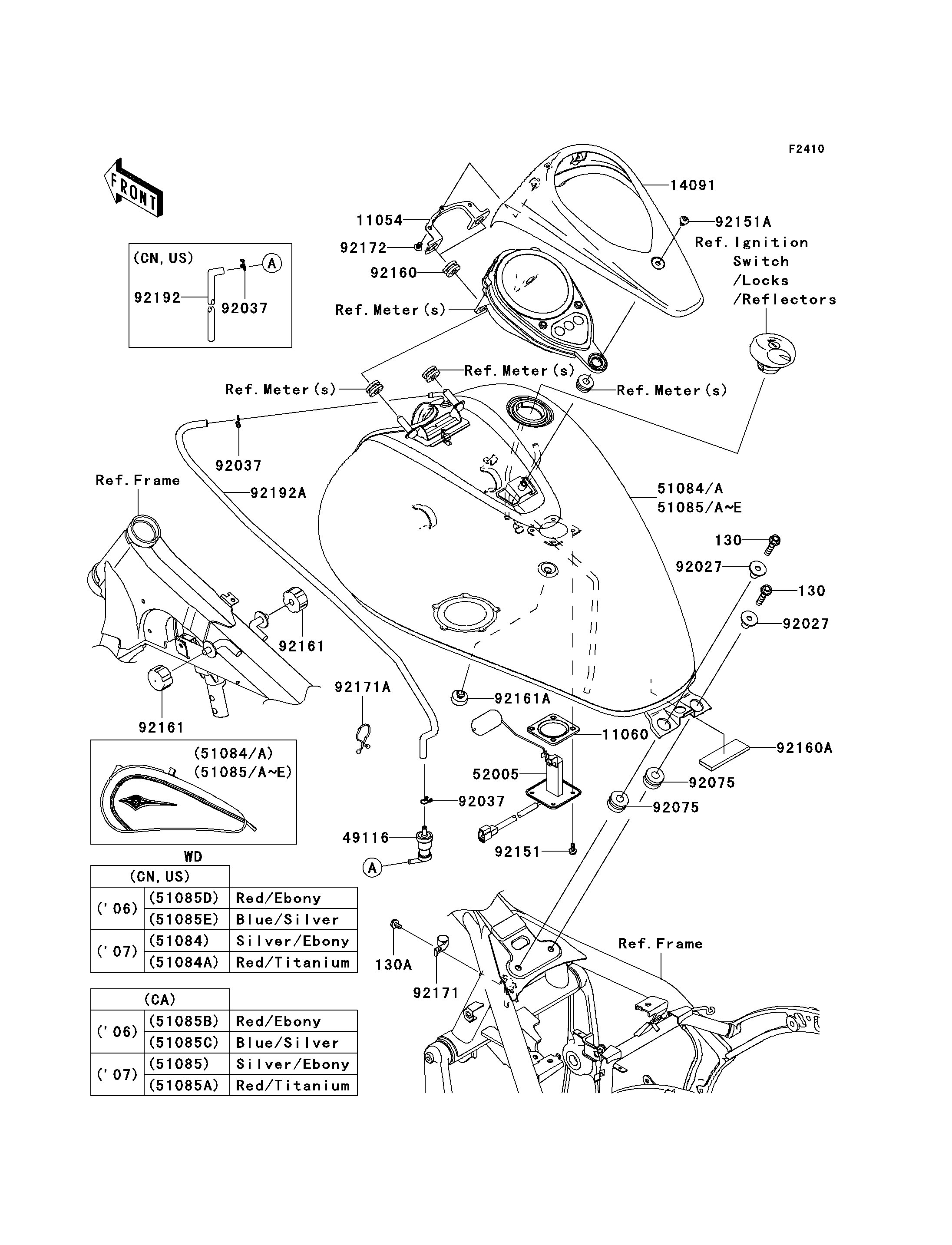

2007 Vulcan 900 Classic LT - Fuel Tank(D6F/D7F)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054
11060
11060
11060
14091
14091
14091
49116
49116
49116
52005
52005
52005
92027
92027
92027
92027
92027
92027
92075
92075
92075
92075
92075
92075
92151
92151
92151
130
130
130
130
130
130
130A
130A
130A
92151A
92151A
92151A
92160
92160
92160
92160A
92160A
92160A
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92171
92171
92171
92171A
92171A
92171A
92172
92172
92172
92192A
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER,FR 11054 11054-0034 1
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,METER 14091 14091-0516 1
VALVE-ASSY,CHECK 49116 49116-0014 1
GAUGE,FUEL 52005 52005-0020 1
COLLAR,L=19.3 92027 92027-1780 2
DAMPER 92075 92075-1736 2
BOLT,5X12 92151 92151-1599 4
BOLT-FLANGED,8X30 130 130BA0830 2
BOLT-FLANGED,6X10 130A 130BB0610 1
BOLT,SOCKET,6X12 92151A 92151-1940 1
DAMPER 92160 92160-1162 2
DAMPER 92160A 92160-1323 1
DAMPER,FUEL TANK 92161 92161-0293 2
DAMPER,SEAT 92161A 92161-1065 1
CLAMP 92171 92171-0595 1
CLAMP 92171A 92171-1185 1
SCREW,TAPPING,5X14 92172 92172-0006 2
TUBE,FUEL TANK-VALVE 92192A 92192-0303 1
TANK-COMP-FUEL,SILVER/EBONY 51084 51084-5315-686 1 CNUS
TANK-COMP-FUEL,RED/TITANIUM 51084A 51084-5316-10W 1 CNUS
TANK-COMP-FUEL,SILVER/EBONY 51085 51085-5119-686 1 CA
TANK-COMP-FUEL,RED/TITANIUM 51085A 51085-5120-10W 1 CA
CLAMP,TUBE 92037 92037-147 2 CA
CLAMP,TUBE 92037 92037-147 3 CNUS
TUBE,TANK-SEPARATOR,BLUE 92192 92192-0215 1 CNUS
