Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

130
130A
130A
220
54010A
54011A
54012
54012A
92171
92171A
92171B

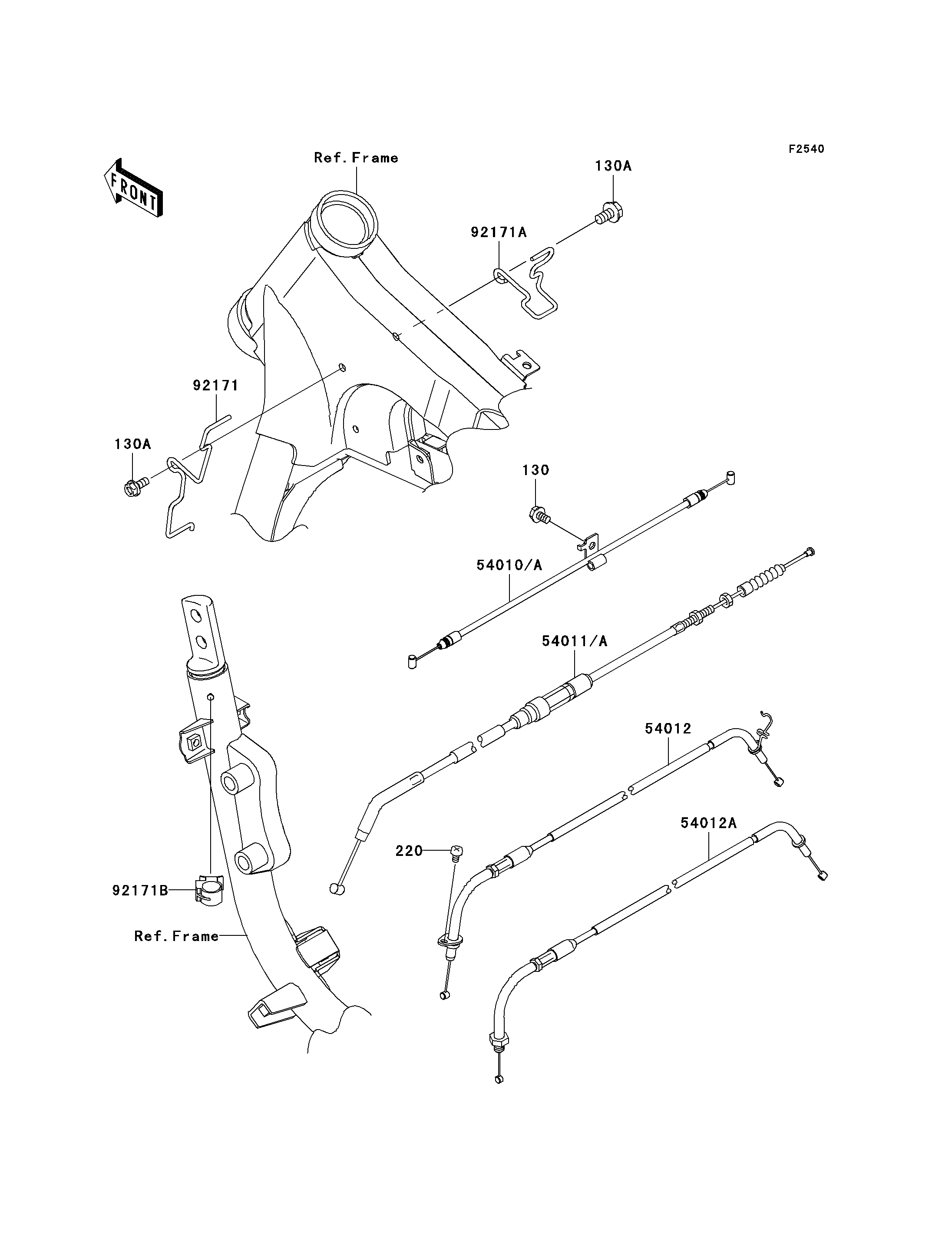

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 1
BOLT-FLANGED,6X14 130A 130BB0614 2
SCREW-PAN-CROSS,5X8 220 220AB0508 1
CABLE,SEAT LOCK 54010A 54010-0065 1
CABLE-CLUTCH 54011A 54011-0070 1
CABLE-THROTTLE,OPENING 54012 54012-0171 1
CABLE-THROTTLE,CLOSIMG 54012A 54012-0172 1
CLAMP,FR,LH 92171 92171-0597 1
CLAMP,FR,RH 92171A 92171-0605 1
CLAMP,DIA=15 92171B 92171-1424 1
