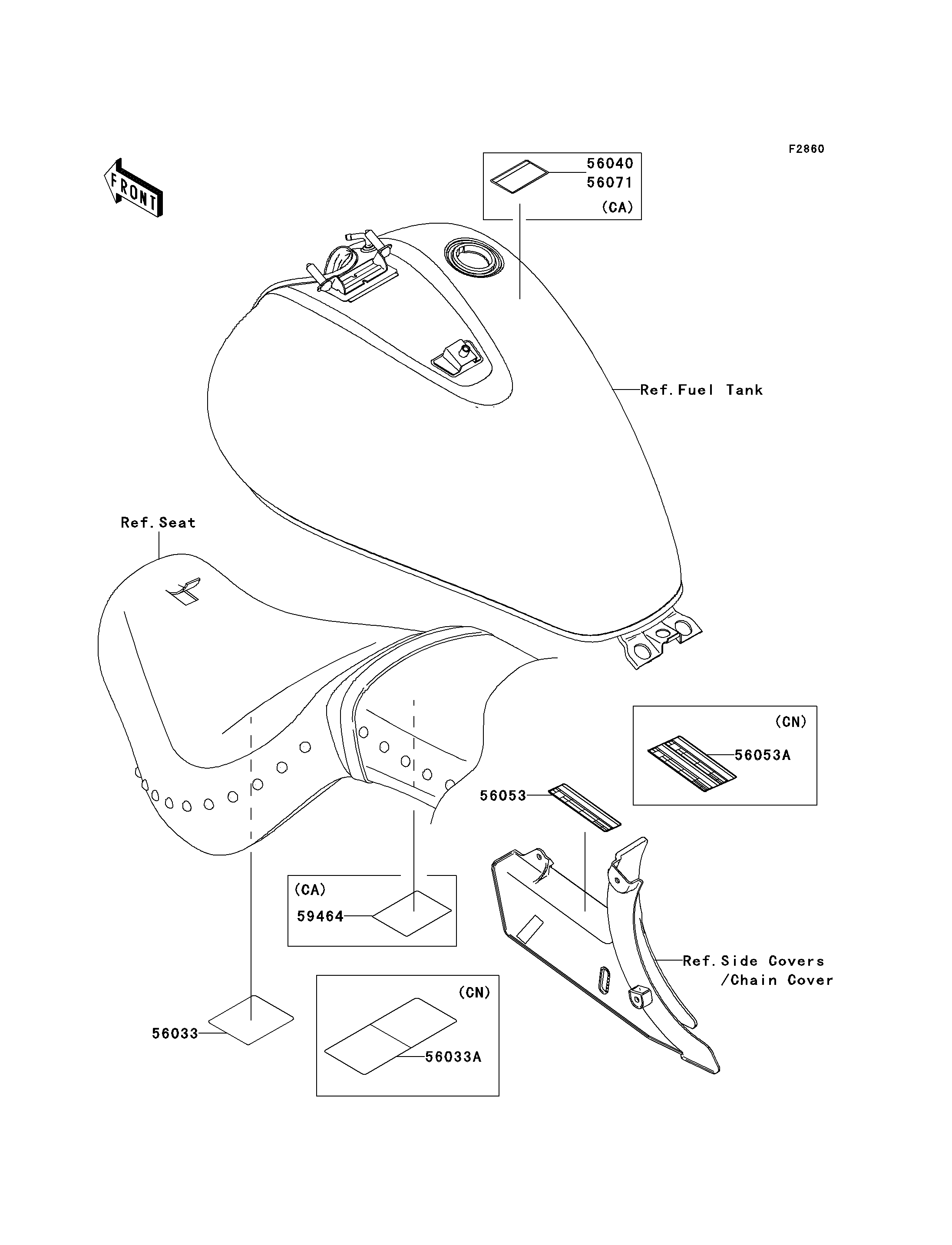

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,DAILY SAFETY 56033 56033-0140 1 CAUS
LABEL-MANUAL,DAILY SAFETY 56033A 56033-0141 1 CN
LABEL-WARNING,EVAPO 56040 56040-1121 1 CA
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-0176 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56053A 56053-0177 1 CN
LABEL-CERTIFICATION,EVAPO ROUT 59464 59464-0684 1 CA
