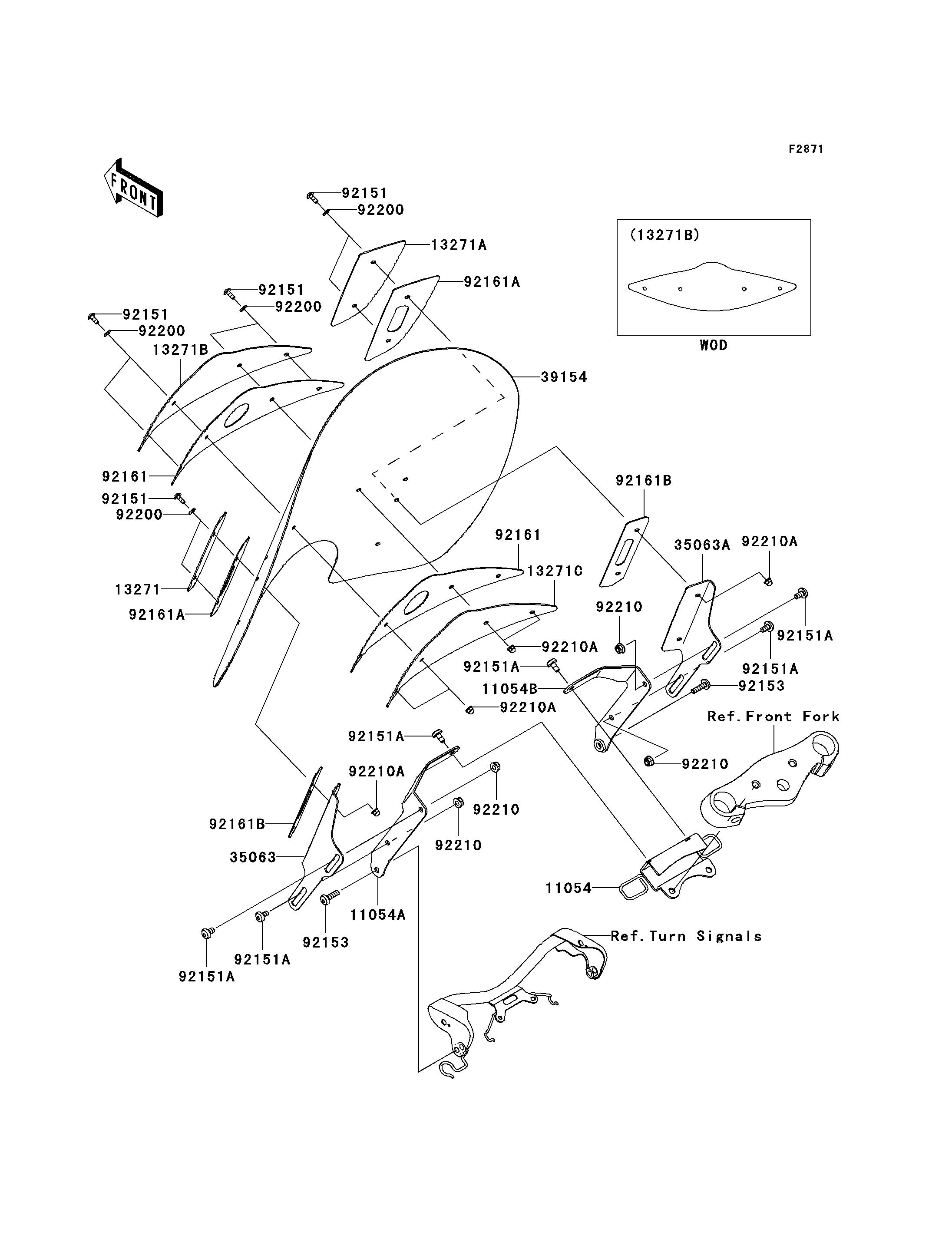

2007 Vulcan 900 Classic LT - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
11054B
13271
13271A
13271B
13271C
35063
35063A
39154
92151
92151
92151
92151
92151A
92151A
92151A
92151A
92151A
92151A
92153
92153
92161
92161
92161A
92161A
92161B
92161B
92200
92200
92200
92200
92210
92210
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CNT 11054 11054-0787 1
BRACKET,LH 11054A 11054-0789 1
BRACKET,RH 11054B 11054-0791 1
PLATE,WINDSHIELD,LH,OUTER 13271 13271-0704 1
PLATE,WINDSHIELD,RH,OUTER 13271A 13271-0705 1
PLATE,WINDSHIELD,CNT,OUTER 13271B 13271-0706 1
PLATE,WINDSHIELD,CNT,INNER 13271C 13271-0707 1
STAY,WINDSHIELD,LH 35063 35063-0267 1
STAY,WINDSHIELD,RH 35063A 35063-0268 1
WINDSHIELD 39154 39154-0018 1
BOLT,SOCKET,6X16 92151 92151-1751 8
BOLT,SOCKET,8X16 92151A 92151-1752 6
BOLT,SOCKET,8X30 92153 92153-1467 2
DAMPER,WINDSHIELD,CNT 92161 92161-0330 2
DAMPER,WINDSHIELD,LH&RH,OUTER 92161A 92161-0332 2
DAMPER,WINDSHIELD,LH&RH,INNER 92161B 92161-0382 2
WASHER,6.5X14.5X1.5 92200 92200-3775 8
NUT,LOCK,FLANGED,8MM 92210 92210-0330 4
NUT,CAP,6MM 92210A 92210-1252 8
